Fast and Accurate Flat Sample Preparation Machine for ASTM Compliance
General

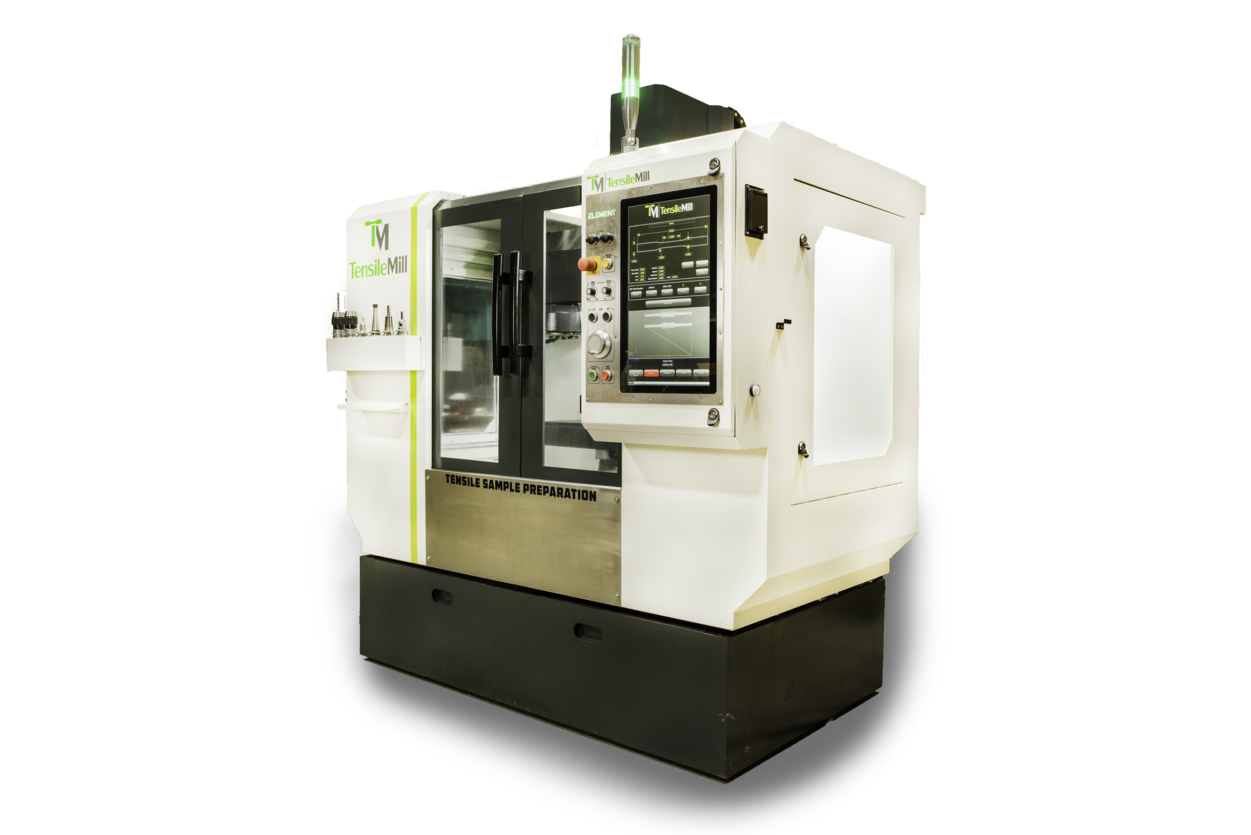

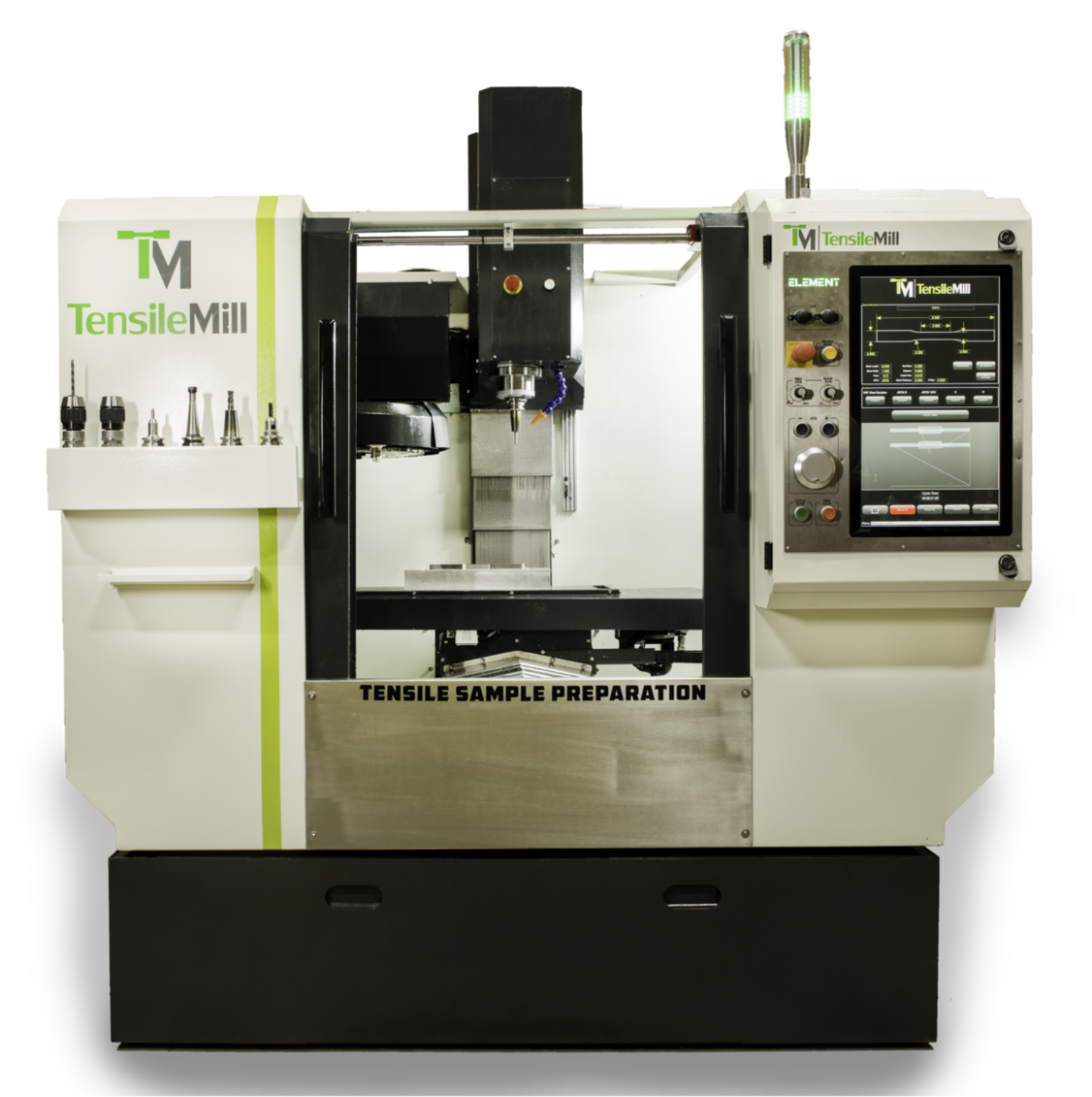

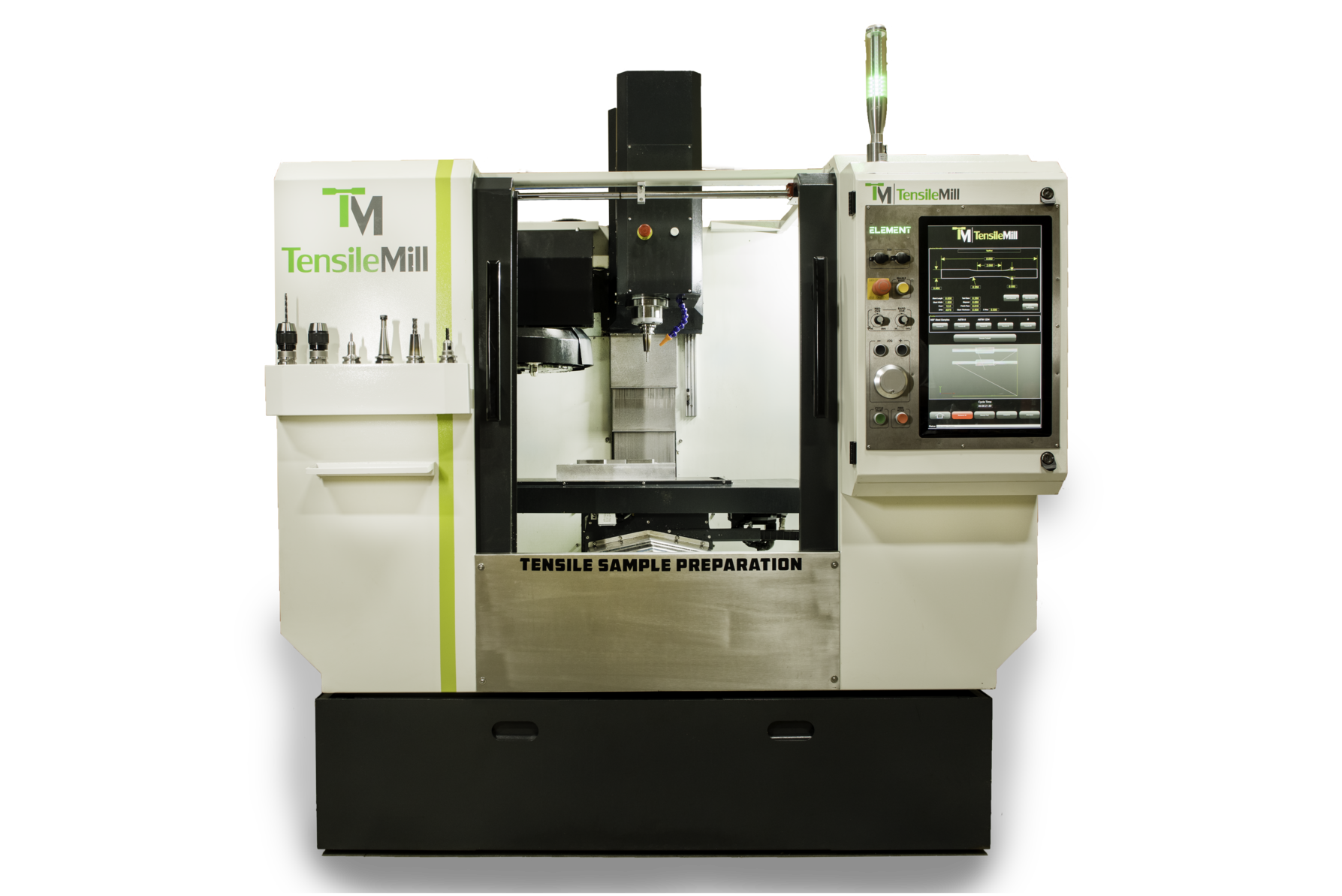

TensileMill CNC XL - Flat Specimen Preparation is a powerful and dynamic addition to any manufacturing floor. High powered spindle and servos increase material removal rates. Mach4 based CNC control and substantial memory make large, complex programs easy to load and execute. For smaller jobs, wizards make on machine programming fast and easy. Quickly create pockets, hole patterns, text engraving and more.
TensileMill CNC XL - Flat Specimen Preparation is the upgrade from our classic TensileMill CNC. This machine is designed with larger table dimensions, travel distance, tooling options, and servo power to accommodate your high quantity, tougher material tensile sample preparation needs.
Major Specifications
- Travels (X/Y/Z): 15.7”/9.1”/15.7” (400mm/230mm/400mm)
- Table Dimensions: 31.5” x 9.4” (800mm x 240mm)
- Load Capacity: 330 lb (150 kg)
- Spindle Speed: 10,000 RPM
- Spindle Power: 5 hp (3.7 kW) Peak
- Number of Tools: 10
- Tool Shank: BT30
- Max Feed: 1000 ipm (25.4 m/min)
Controller

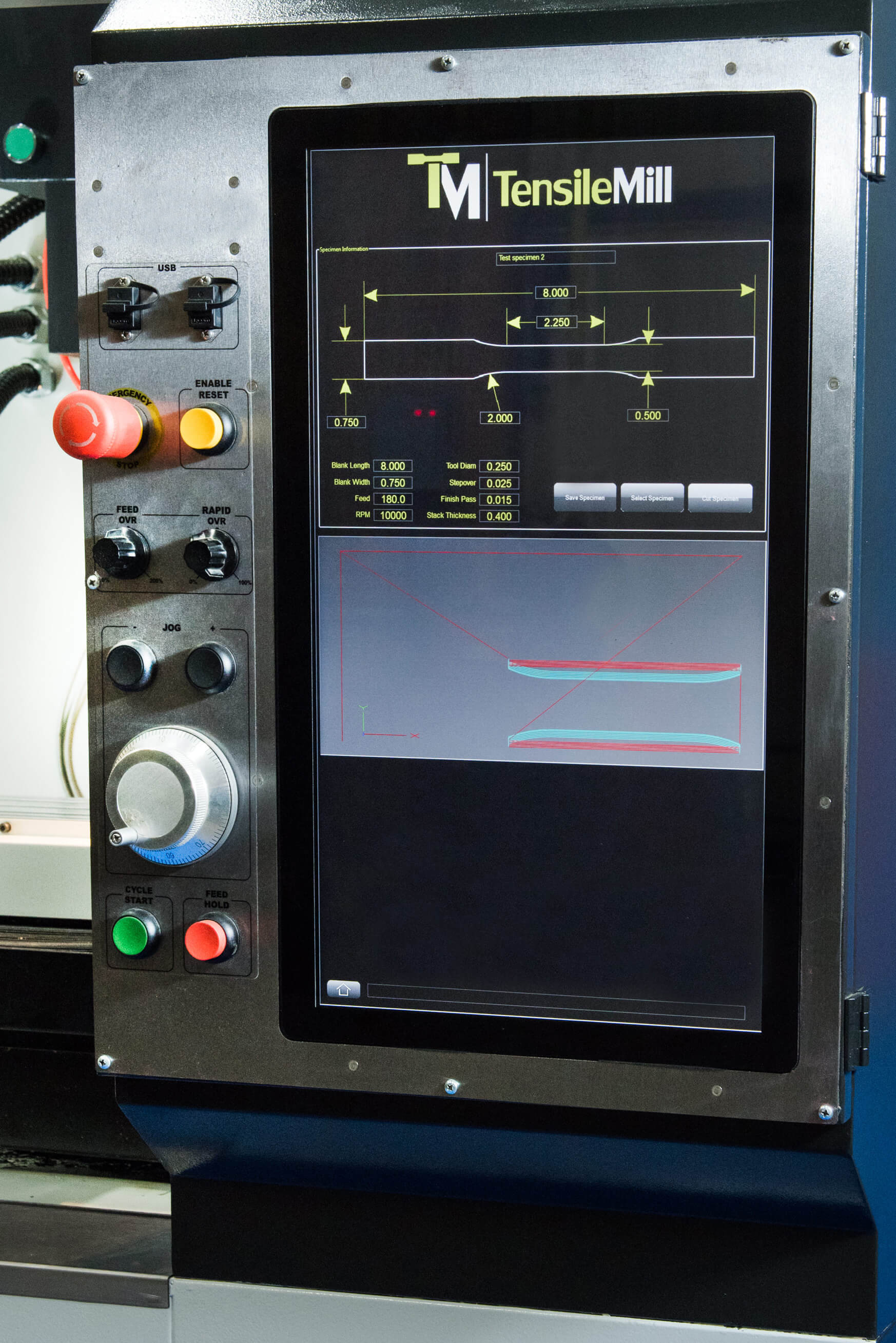

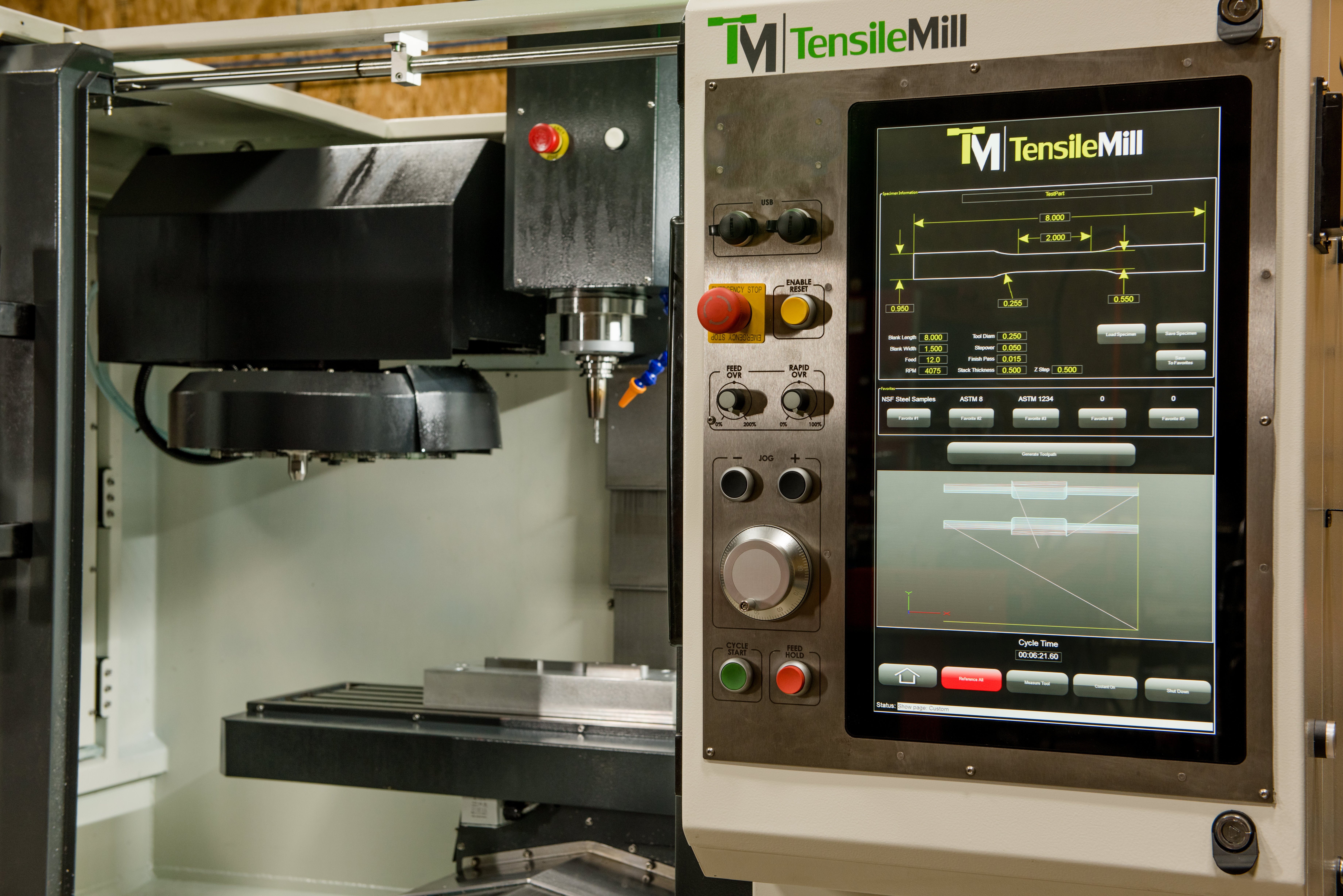

Our easy to use touch screen controller is equipped with our complete Carbon software. Our control systems include 64 Gb of storage, 4 Gb of RAM, WiFi, Ethernet, USB ports, macro B programming, 254 tool offsets, 126 work offsets, helical interpolation, drilling canned cycles, scaling and mirroring, advanced trajectory planning, cutting edge dual mode cutter compensation, and more. Along with the tensile milling software interface, Carbon also allows the operator to access the MACH4 Industrial CNC Software used for professional CNC Control functions. Our Carbon software is constantly having new features developed, and every TensileMill CNC XL system includes updates at no additional cost.

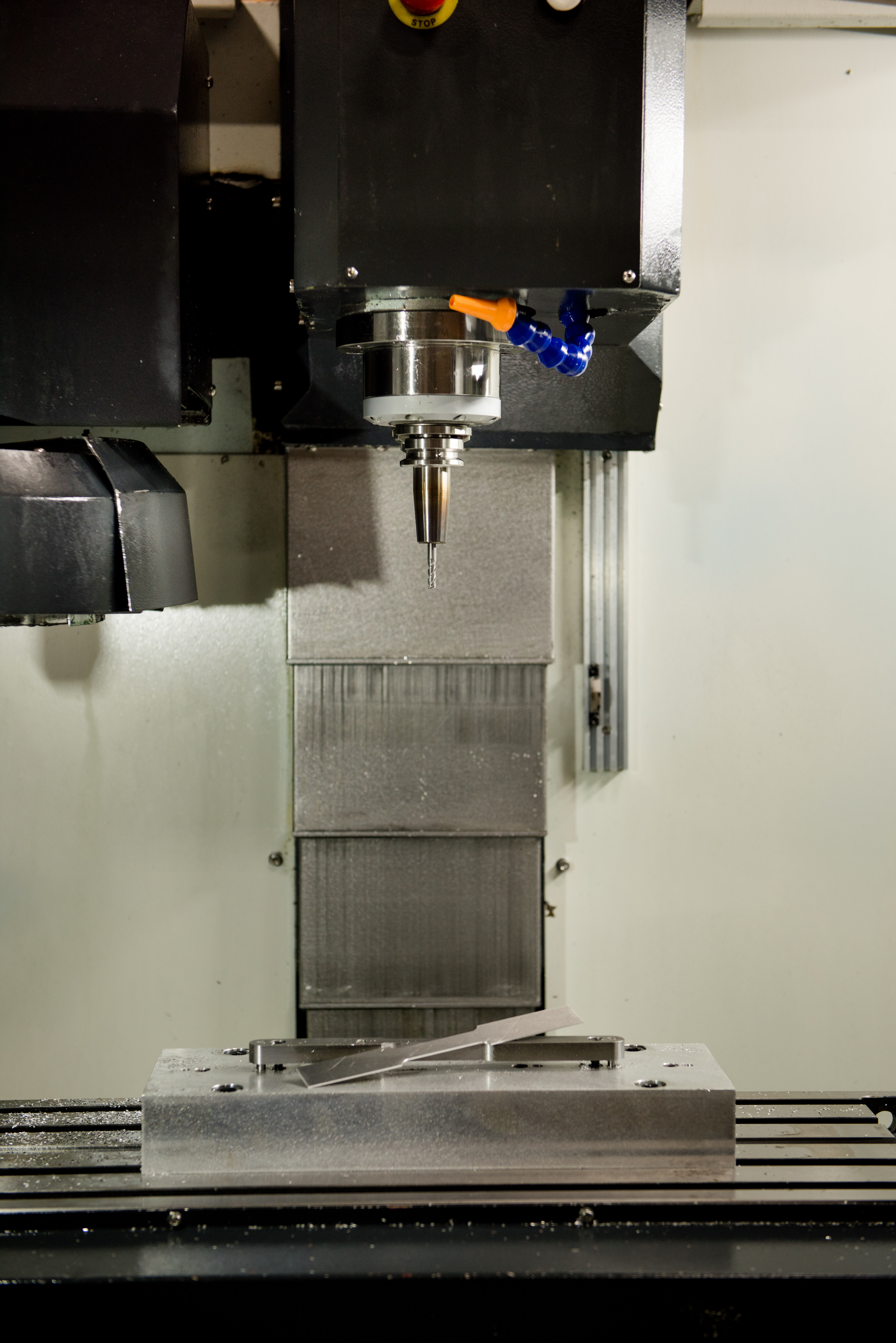

Features
- Rugged cast iron frame and linear guide ways provide a stable foundation for high speed machining.
- Large 20 mm ball screws on X and Y, 25 mm on Z.
- Belt driven 5 horsepower 10,000 RPM servo spindle with BT30 taper provides the power for high material removal rates.
- Servo spindle with full synchronous position control. Disc spring tool clamping with collet style gripper. Air over hydraulic tool release.

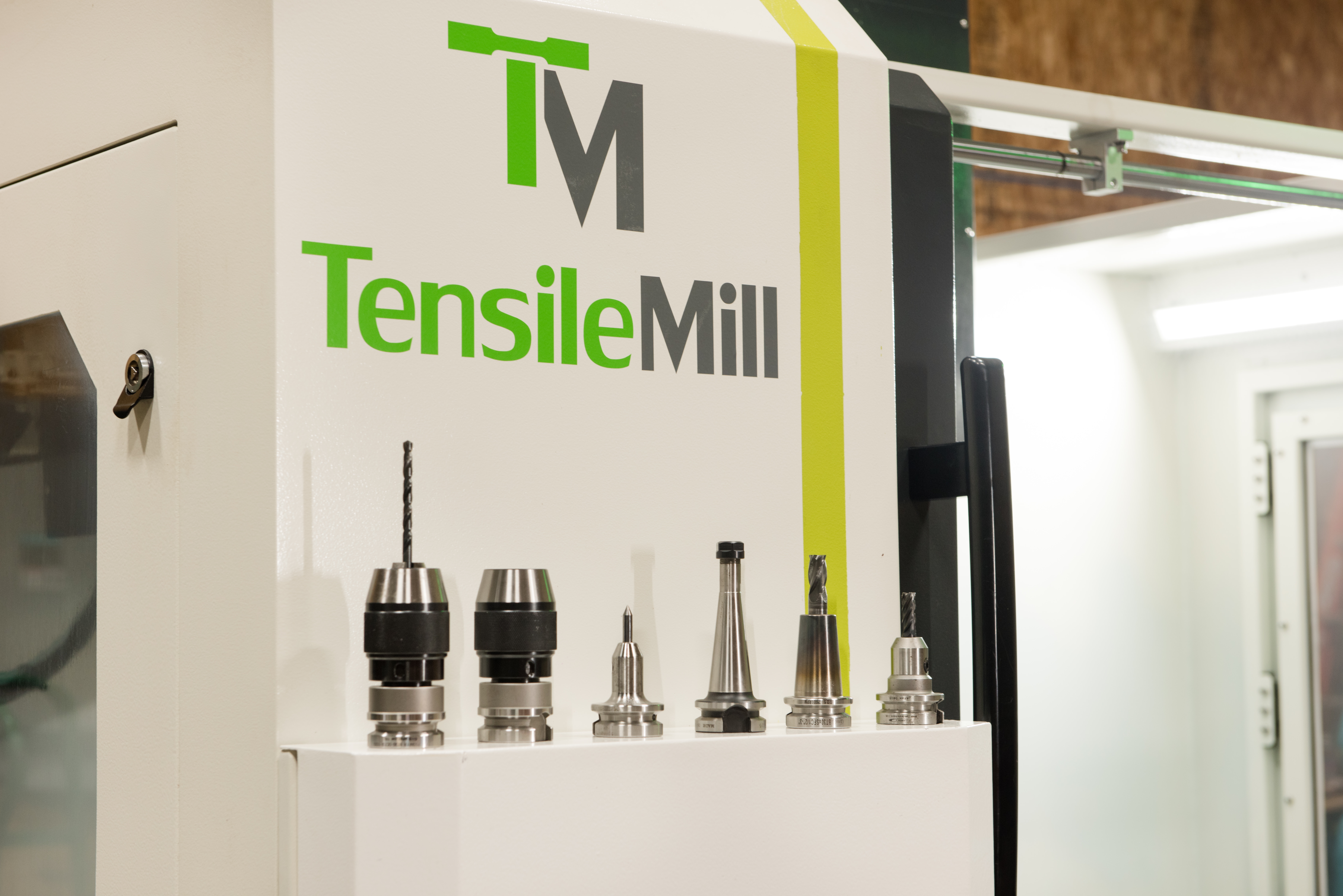

- 10 station umbrella style automatic tool changer. Assign any tool to any position.
- 30 Taper CNC Machining Center
- Clean and simple control panel with large format touch screen, MPG and integrated status light.
- Mach4 control software is powerful and flexible. Integrated wizards for on machine programming. Fanuc G code compatible, Fanuc Macro B included
- Industrial PC loaded with a 64 GB solid state hard drive and 4 GB of RAM.
- Wireless and Bluetooth standard
- 5th generation 64 bit Broadwell processor
Service Plan
TensileMill CNC Service Plan available – Keep your equipment running at peak performance with Preventative Maintenance (PM) and expert training. Contact your TensileMill representative to find the best plan for your needs.
Technical Specifications
|
Dimensions
|
|
|---|---|
|
Dimensions
(D x W x H) |
66.1 x 75.79 x 86.54 in
|
| Table Size |
31.5 x 10.24 in
|
| Load Capacity |
330 lb
|
| T-Slot Size |
.63 in
|
| Weight |
2976 lb
|
| Working Travel X |
15.75 in
|
| Y |
9.1 in
|
| Z |
15.75 in
|
|
Spindle
|
|
| Speed |
10,000 RPM
|
| Power |
5 hp
|
| Torque |
10.8 lb-ft
|
| Lubrication |
High speed grease
|
| Bearings |
Angular contact ball
|
|
Auto Tool Changer
|
|
| Taper |
BT30
|
| Pull Stud |
MAS P30T-1
|
| Max Tool Diameter |
3.14 in
|
| Max Tool Weight |
13.2 lb
|
| Tool Change Type |
Umbrella
|
| Tool Numbering |
Random pot assignments
|
| Tool Change Time |
6sec
|
|
Servos
|
|
| Servo Power |
1.75 hp
|
| Servo Torque |
1175.4/3299.6 oz-in
|
| Max Feedrate |
1000 ipm
|
| Ball Screws |
PMI double nut, 20 mm on X and Y, 25 mm on Z
|
|
Power
|
|
|---|---|
| Input Voltage |
220 3 phase
|
|
Additional Features
|
|
| Position Repeatability Accuracy |
0.01mm
|
| Motor Drive |
Servo
|
| Drive Mechanism |
Precision Ballscrew
|
| Frame |
Cast iron
|
| Connection Requirements |
Pneumatic (optional)
|
|
Control
|
|
| Type |
PC based Mach4 control
|
| Processor |
64 bit 5th generation Intel Broadwell
|
| Program storage |
64 GB SSD, unlimited number of programs
|
| Memory |
4 GB standard (upgradable)
|
| Display |
Full color multi-touch (glove compatible)
|
| Modes |
Auto/MDI/Jog, auto switching
|
| Wizards |
On machine programming with graphic wizards.
|
| Units |
Inch/Metric
|
| Overrides |
Feed (0%-150%), Spindle(50%-150%), Rapid(0%, 25%, 50%, 100%), all user configurable
|
| G code |
Fanuc compatible, Mach3 compatible
|
| Custom Macro |
Fanuc Macro B compatible
|
| External Communication |
TCP Modbus
|
| M-Codes |
Unlimited user defined M codes, 5 inputs and 5 outputs available (upgradeable)
|
What service and technical support do you provide for Flat Tensile Sample Preparation machines?
You receive rapid-response technical support from CNC consultants and application engineers for installation, applications, and day-to-day operation. We respond by phone, email, or live video, with same-business-day acknowledgment for most requests.
Support covers programming and machining for standard-compliant flat specimens, including common geometries used for ASTM E8 metals and ISO 527 plastics when applicable. We help with post-processor setup, G-code verification, cutter and tooling selection, recommended feeds and speeds across aluminum, steel, and polymers, and workholding alignment to maintain parallelism and target gauge length. Remote diagnostics can review controller parameters, tool and work offsets, probing routines, and surface finish outcomes. On request, we provide templated CAM files and sample toolpaths to speed first-article approval and increase throughput.
For ongoing operations, we offer operator training, preventive maintenance schedules, and spare parts assistance for cutters, belts, fixtures, and other wear items. Most consumables ship from North America to keep downtime low. When needed, on-site visits can be scheduled for advanced troubleshooting or calibration checks.
If you would like to plan service and training for your lab, you can review options on the Flat Tensile Test Sample Preparation Machines page.

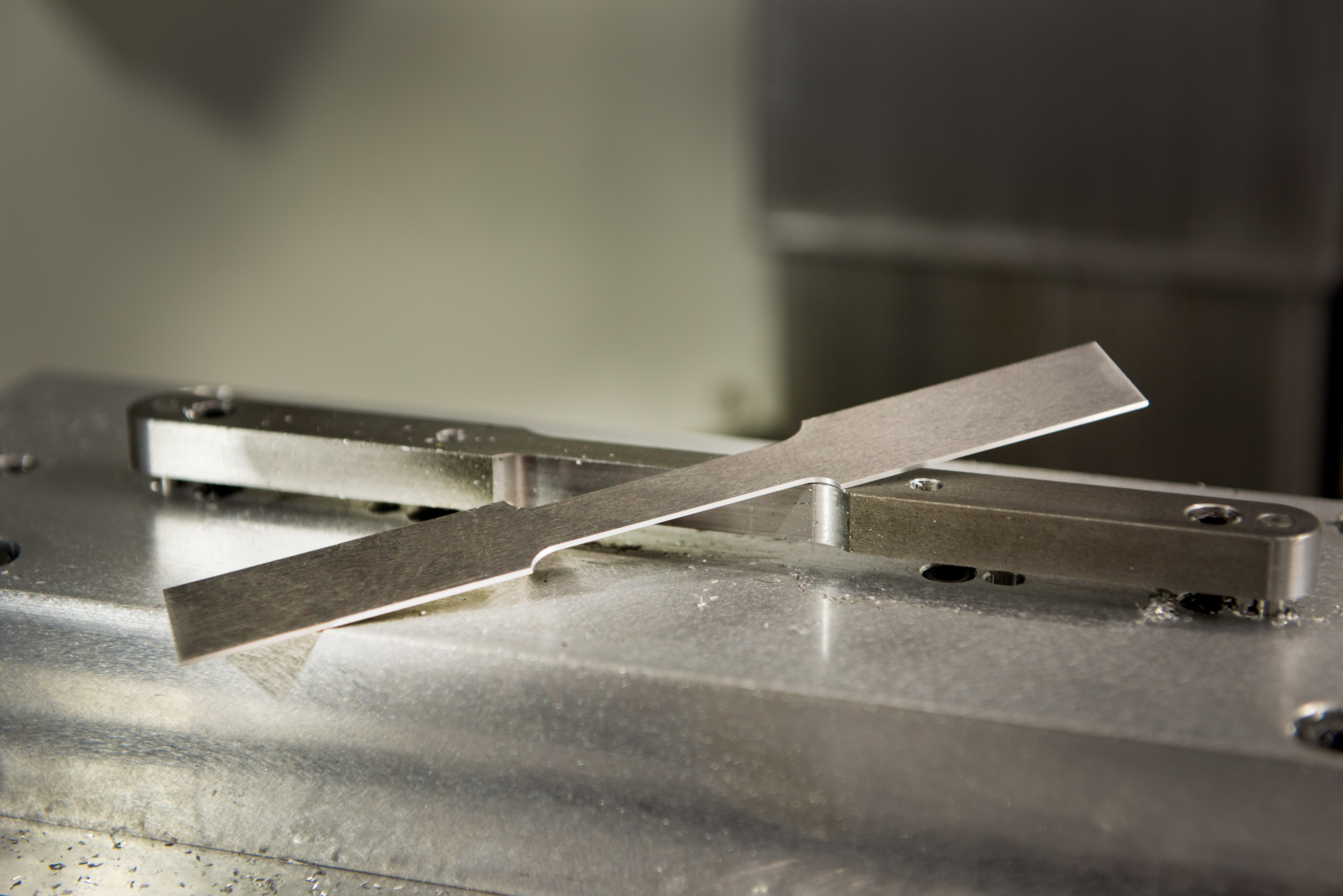

Will burrs remain on tensile specimens after the cutting cycle on a TensileMill CNC sample preparation system?

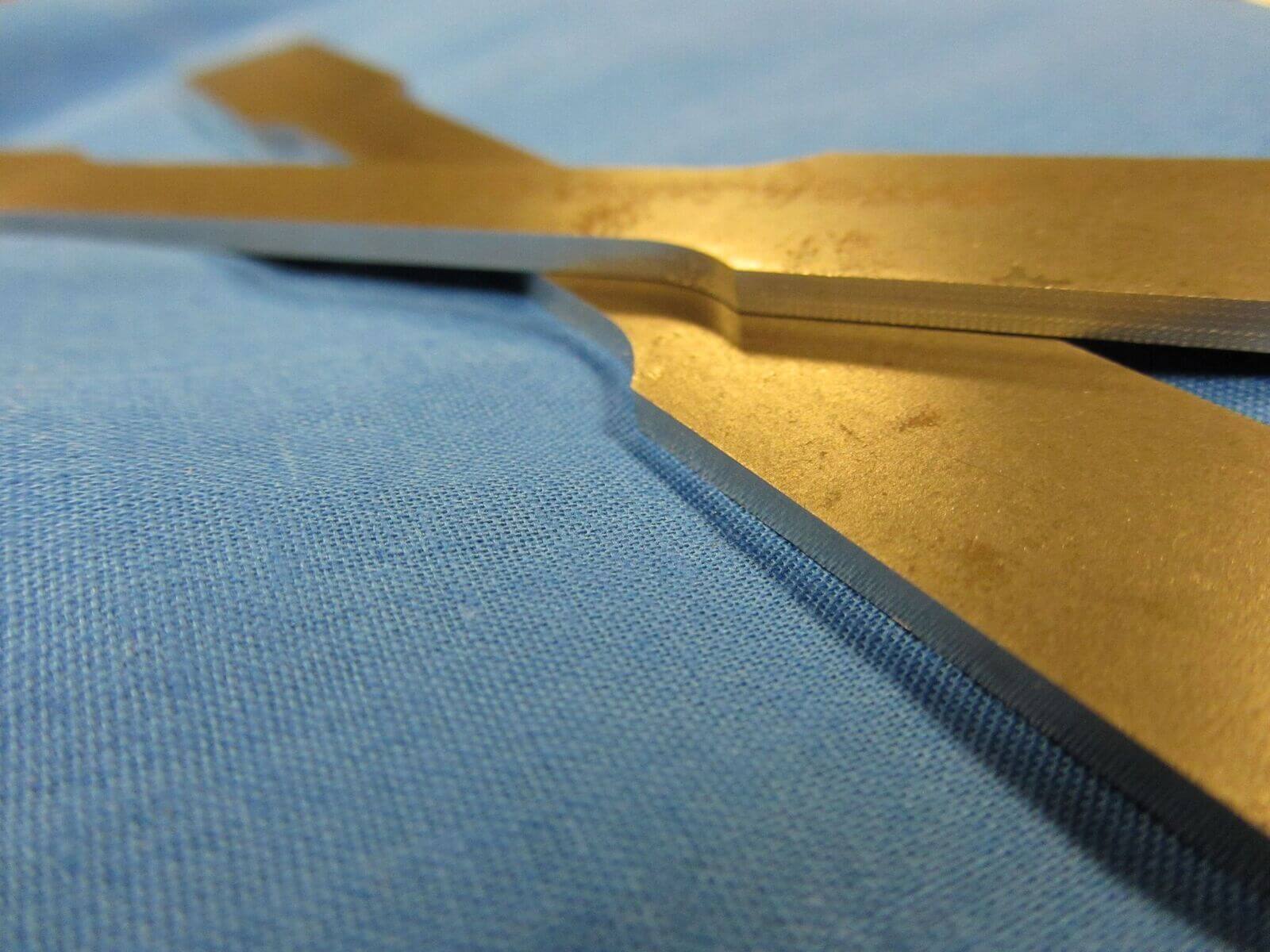

Edge condition after machining depends on material type, cutter or insert condition, feed and speed, coolant, and toolpath strategy. With the supplied starter tooling and tuned parameters, burr can typically be minimized to a negligible edge or eliminated. Good practices include matching the cutter or insert grade to the alloy, keeping cutting edges sharp, using adequate coolant, and programming climb milling with a light finishing pass of about 0.005 to 0.010 in (0.13 to 0.25 mm) stock. Adding a small edge break of roughly 0.005 in (0.13 mm) with a chamfer or deburr pass helps reduce handling nicks before testing.
If some burr remains, quick secondary methods are common in tensile labs: hand files, deburring blades, small countersinks, tube deburring tools for round gage sections, fine flap wheels, and nonwoven abrasive pads. Remove only the raised edge so gage width or diameter is not altered, then verify dimensions and surface quality prior to testing. Our team can recommend tooling and parameters for both flat and round workflows to help you hit your required finish with minimal rework.
If you would like to source deburring media, end mills, inserts, and related supplies, you can review options on the Consumables and Spare Parts page.
How do I determine the optimal spindle speed and feed rate for machining tensile specimens in a specific material?
Optimal speed and feed depend on the material, cutter geometry, coating, and the specimen’s gauge geometry. Start with tooling matched to your alloy or polymer, then validate with a brief trial. TensileMill CNC offers complimentary dog-bone preparation where our engineers cut your samples on flat and round specimen systems such as the TensileMill CNC MICRO or MINI for flat blanks and the TensileTurn CNC series for round bars, typically converging on stable parameters by the second or third cycle. During installation and training, our technicians also tune speeds, feeds, coolant strategy, and toolpaths at your site so production runs are repeatable and surface finish in the gauge section aligns with your testing needs.
A practical workflow is to begin with the cutter manufacturer’s conservative chip load, a shallow axial depth per pass such as 0.050 to 0.100 in (1.27 to 2.54 mm), and moderate radial engagement. Make a short 1 to 2 in (25 to 50 mm) test pass outside the gauge length, then review chip form, temperature at the gauge, spindle load, and finish. Increase feed in small steps until chatter or rising load appears, reduce by about 10 percent, and adjust rpm to stabilize the cut. Use climb milling for flat specimens, sharp inserts on round specimens, and flood coolant or MQL to keep the gauge section smooth, which supports ASTM E8 or ASTM D638 geometry requirements when applicable. Save the final recipe in the controller for repeatable throughput.
If you would like parameter guidance for your material or a complimentary dog-bone trial, you can connect with our team on the Contact Us page.
What tensile specimen geometries and dimensions can TensileSoft prepare?
TensileSoft supports both standard straight-edge and tapered-edge flat tensile specimens. Operators can select common dog-bone geometries from ISO 527 and ASTM D638 or input custom sizes. On compact systems such as the TensileMill CNC MINI, tapered-edge profiles are typically produced up to 0.50 in (12.7 mm) thickness.
In practice, you choose a template or define gauge length, grip width, fillet radius, overall length, and thickness, then clamp the blanks and start the cycle. The software creates the profile and edge transitions, applies optimized toolpaths, and accommodates single-part or stacked cutting to increase throughput. Final size ranges depend on machine travel, fixturing, material, and cutter selection, so your achievable envelope is governed by the specific flat specimen system installed. The same workflow applies across the MICRO, MINI, Classic Upgrade, and XL flat machines, giving plastics and metals labs a fast path to repeatable edges for standard-compliant tensile testing.
If you would like to compare flat-specimen systems and software workflows, you may review details on the Flat Specimen Preparation Equipment Lineup page.
How Many Flat Tensile Specimens Can I Prepare Per Cycle?
Throughput per cycle depends on the machine configuration, workholding, blank size, and material hardness. Standard flat-specimen setups typically machine one coupon at a time, while optional multi-station and triple-clamp fixtures allow multiple blanks or stacked sets in a single program.
On compact systems, a single-station clamp is common for one-part cycles. Larger or upgraded setups can use multi-station fixtures. With a triple-clamp configuration, operators may load up to three stacked blanks, subject to total stack height, cutter reach, and part rigidity. As a practical reference, many labs run stacks totaling about 1.0 in (25.4 mm), and individual coupons up to 0.5 in (12.7 mm) thick on select models. The achievable part count also varies by alloy and starting thickness, since harder materials and wider gauge sections call for more conservative feeds and additional passes. If you share your material grade, starting thickness, and target geometry, our team can recommend a cycle plan and fixture package that balances part count, surface finish, and tool life.
If you would like to discuss throughput and fixturing for your application, you can connect with our team on the Contact Us page.
Can I Stack Multiple Blanks for Faster Tensile Sample Preparation?
Yes. Our flat-specimen systems support stacked machining using a dedicated clamping device that accommodates a combined stack height up to 1.0 in (25.4 mm). The clamp grips the full pack so the mill can rough and finish several specimen profiles in one program with stable holding and repeatable alignment.
Stacking is commonly used for metals and polymers to raise throughput while maintaining final geometry. Use uniform blank thickness, register the edges, and verify cutter reach across the full 1.0 in (25.4 mm) height. Apply toolpaths, feeds, and coolant suited to the material to manage heat and burr formation. After machining, separate the coupons, deburr, and measure according to the applicable standard, for example ASTM E8 for metallic flats or ISO 527 for plastics, so each specimen meets the required dimensions and radii. This approach reduces handling time per part without changing compliance, since every coupon is inspected individually.
If your workflow calls for taller packs, unusual geometries, or abrasive alloys, specialty clamps and tooling packages are available to match your specimen design and production rate.
If higher throughput is a priority, you may review model compatibility and fixturing details on the Flat Tensile Test Sample Preparation Machines page.
Why Choose the Large Flat Tensile Test Sample Preparation Machine for Oversized Specimens?
This large-format system is built for labs and production cells that process heavy sections and wide blanks, delivering repeatable flat tensile specimens from demanding materials while maintaining high throughput.
A rigid cast iron structure and extended travels of 15.75 in x 9.1 in x 15.75 in (400 mm x 230 mm x 400 mm) support oversized work. The table handles up to 330 lb (150 kg), and a 5 hp, 10,000 RPM spindle with BT30 taper and a 10-tool automatic changer supports both aggressive roughing and fine finishing. Feed rates up to 1000 ipm (25.4 m/min) help shorten cycle time on thick plate and bar stock.

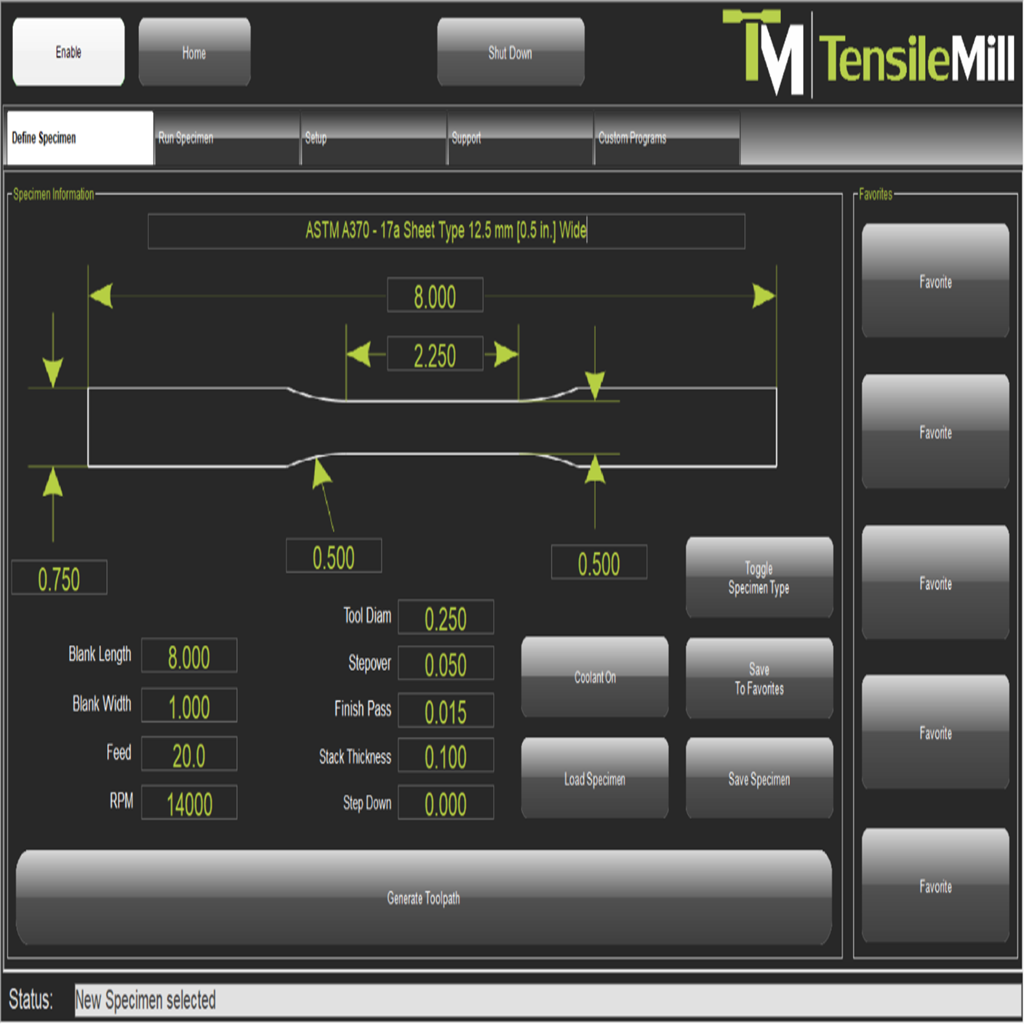

The touchscreen control runs dedicated tensile software with preset geometries for ASTM E8 and ASTM A370, plus user-defined inputs for special dimensions. Application-matched fixturing and cutting tools are included, so operators can go from blank to specimen with minimal setup steps. Each system arrives as a turnkey package with installation guidance and operator training, and ongoing software updates keep the interface current.
If you would like to review specifications, options, and application examples, you can explore the details on the TensileMill CNC XL product page.
What After-Sales Support Comes With the Large Flat Tensile Sample Preparation Machine?
You receive dedicated post-sale support for your large flat specimen preparation system. This includes guided commissioning, remote or on-site operator training, calibration assistance, and application tuning so your workflow produces consistent, test-ready coupons.
During installation, our team walks you through utilities, control setup, and fixture alignment. After you start running parts, engineers help refine clamping strategy, tool paths, and cutting parameters for common alloys and polymers, as well as batch sequencing for multi-stack fixtures. Support also covers periodic verification of specimen geometry for standards such as ASTM E8, ASTM A370, and ISO 527 when these apply to your materials. Preventive maintenance plans, parts availability, software updates, and backup of programs and offsets are included in the service scope. For fast diagnostics, you can share photos, videos, and log files with our engineers for same-day guidance. Help is available by phone at +1 877-672-2622 ext. 3, by email at support1@tensilemillcnc.com, or through our online ticket system.
If you would like to review the service scope and technical details for this platform, you can read more on the TensileMill CNC XL product page.
What Is the Lead Time for the TensileMill CNC XL Large Flat Tensile Sample Preparation Machine?
Typical build and delivery time for the Large Flat model is 4 to 6 weeks from order confirmation. The quoted window varies with configuration details such as dedicated fixturing, tool packages, software setup, production queue, and domestic or international shipping requirements. For urgent programs, limited rush allocation may be possible based on the active schedule, which would be confirmed at the time of quotation. You can check today’s timing by calling 877-672-2622 or emailing sales@tensilemillcnc.com.
To keep your schedule tight, share your specimen geometry and standard, batch quantities, material type and hardness, accessory needs, and site readiness for power and air with your quote request. Our logistics team coordinates crating, carrier booking, installation planning, and operator training so your lab moves from delivery to first cuts with minimal downtime. If you require a factory run-off, export crating, or on-site commissioning, those steps are incorporated into the quoted lead time.
If you would like to explore specifications, accessories, and typical delivery windows, you can read more on the TensileMill CNC XL, Large Flat Tensile Test Sample Preparation Machine product page.
How Easy Is the Large Flat Tensile Sample Preparation Machine to Operate, and Do You Offer Training?
The large flat specimen system is designed for intuitive operation. A touch screen controller runs our Carbon interface with TensileSoft templates for flat tensile specimens. Operators choose a standard geometry such as ASTM E8, ASTM A370, or ISO 6892, enter thickness and target dimensions, and the software generates the toolpath and feeds. Programs, tool offsets, and work coordinates can be saved for repeat jobs. Advanced users may switch to full Mach4 CNC functions when general-purpose milling is needed.
Training is included. Remote onboarding is standard, and on-site commissioning and operator training are available. Sessions cover installation, fixturing and clamping, safety, software workflow, offsets and probing, best practices for surface finish, and routine maintenance. New users typically become comfortable quickly, and our technical support team remains available at 877-672-2622 ext. 3 or support1@tensilemillcnc.com for ongoing guidance.
If you would like to review interface features and training scope, you can learn more on the TensileMill CNC XL product page.
Does the Large Flat Tensile Sample Preparation Machine Meet ASTM and ISO Standards?
Yes. The large flat specimen system is configured for international tensile standards, including ASTM E8 and ASTM A370 for metallic specimens, ISO 6892, as well as commonly used DIN and JIS geometries. Preloaded libraries cover standard dog-bone and subsize profiles, and operators can add custom programs for proprietary coupons. Precision workholding, calibrated tool setting, and consistent toolpaths deliver the required tolerances, edge radii, and surface finish for reliable test results.
In daily use, you can select a standard from the built-in library, set gauge length, width, and thickness, lock the recipe, and run batches with repeatable outcomes. The control supports inch and metric units, role-based access to prevent unintended edits, and data export to support traceability in your quality system. If formal documentation is needed, TensileMill CNC facilitates equipment certification for both our machines and third-party devices to support NADCAP, ISO, and ASTM audit requirements.
If you would like to review compliance features and technical specifications, you can learn more on the TensileMill CNC XL product page.
What Are the Maintenance Requirements and Ongoing Costs for the TensileMill CNC XL?
The XL model is built for long service life with low day-to-day upkeep. Most routine tasks can be performed by in-house technicians without special tooling, and optional Preventative Maintenance programs are available for added support.
Daily practice includes chip removal, inspection of fixturing and fasteners, and quick checks of air and coolant lines. On a weekly cycle, clean the spindle taper and toolholders, verify automatic tool changer operation, and inspect belts and way covers. Monthly tasks typically include topping up the lubrication system, checking coolant or mist concentration, and verifying home sensors and backlash. An annual calibration and safety inspection keeps motion accuracy and repeatability within specification.
Ongoing costs are driven primarily by cutters and wear items. Typical line items include carbide end mills or form tools, pull studs and collets, lubrication grease or oil, coolant or mist concentrate, air and coolant filters, and sacrificial fixture inserts. Spend scales with material hardness and throughput, so labs machining stainless or nickel alloys will replace tooling more frequently than those running aluminum or plastics. Optional Preventative Maintenance visits by factory technicians help reduce unplanned downtime and extend component life.
If you would like a deeper look at service plans and recommended consumables, you can review maintenance details on the TensileMill CNC XL – Large Flat Tensile Test Sample Preparation Machine page.
How Does TensileMill CNC Minimize Downtime on the TensileMill CNC XL Large Flat Specimen Preparation Machine?
We reduce downtime on the large flat specimen system with rapid-response technical support, a serviceable machine layout, and same-day remote diagnostics when required. For the XL model, our team typically replies within 4 hours, and most issues are resolved remotely or by shipping replacement parts with typical delivery in 24 to 48 hours. You can reach support at 877-672-2622 ext. 3, email support1@tensilemillcnc.com, or submit a ticket through our online portal.
From a technical standpoint, the network-connected control streamlines log export and parameter checks, so technicians can isolate faults without waiting for a site visit. Accessible panels and modular assemblies simplify common service tasks, which shortens repair time. A 10-tool automatic changer with a BT30 interface reduces cutter changeovers during multi-step profiles, supporting consistent throughput. Stocked wear items and preventive maintenance kits help convert unplanned stops into scheduled service windows. When on-site assistance is appropriate, the service team coordinates parts in advance and schedules a technician to bring the machine back into production quickly.
If you would like to review capabilities, specifications, and support options, you can explore details on the TensileMill CNC XL product page.
What Is the Average Cost for Flat Tensile Specimen Preparation and Testing with the TensileMill CNC XL?
Typical budgets fall between $150 and $300 per flat specimen when you combine machining, surface preparation, and a single tensile test on a UTM. This range reflects oversized or high-volume workflows commonly handled on the XL platform.
Actual cost depends on material grade, thickness, geometry, batch size, and the surface finish required for standards such as ASTM E8 or ISO 6892. Factors like cutter life, polishing media, fixturing method, and operator time for setup, deburring, and gauge marking all contribute. UTM variables, including grip changes and test duration, also affect the final figure. The XL’s large work envelope and stack-style fixturing can reduce per-part cost as volumes increase by cutting setup time and minimizing handling. Facilities that standardize programs, run batches, and maintain tooling typically land near the lower end of the range. For an itemized estimate based on your material mix and throughput goals, you may use the TensileMill CNC calculator or speak with a product specialist for a tailored quote.
If you would like to review work envelope, fixturing options, and software for oversized flat specimens, you can explore details on the TensileMill CNC XL product page.
What Is the Typical Cost Range to Prepare Flat Tensile Specimens With the TensileMill CNC XL?
Typical all-in cost to machine a flat tensile specimen on the XL is usually $150 to $300 per part. The range depends on material thickness and hardness, geometry complexity, tolerance and finish targets, fixture changes, and batch size. Larger lots reduce unit cost because programming and setup are spread across more pieces, while thick plate or wear-resistant alloys increase tool wear and cycle time.
Cost drivers the system helps control include a 10-tool automatic changer and rapid moves up to 1000 ipm (25.4 m/min), which shorten tool changes and non-cut time. Generous axis travel of 15.75 in × 9.1 in × 15.75 in (400 mm × 230 mm × 400 mm) supports bigger blanks or multiple coupons per setup, cutting handling time. The integrated control and tensile interface improve repeatability, which helps lower scrap on premium materials. If you would like a line-item estimate for your material, geometry, and annual volume, our team can model tooling life, feeds and speeds, and labor assumptions for your scenario.
If you would like to review specifications and options, you can explore the TensileMill CNC XL equipment page for more details.

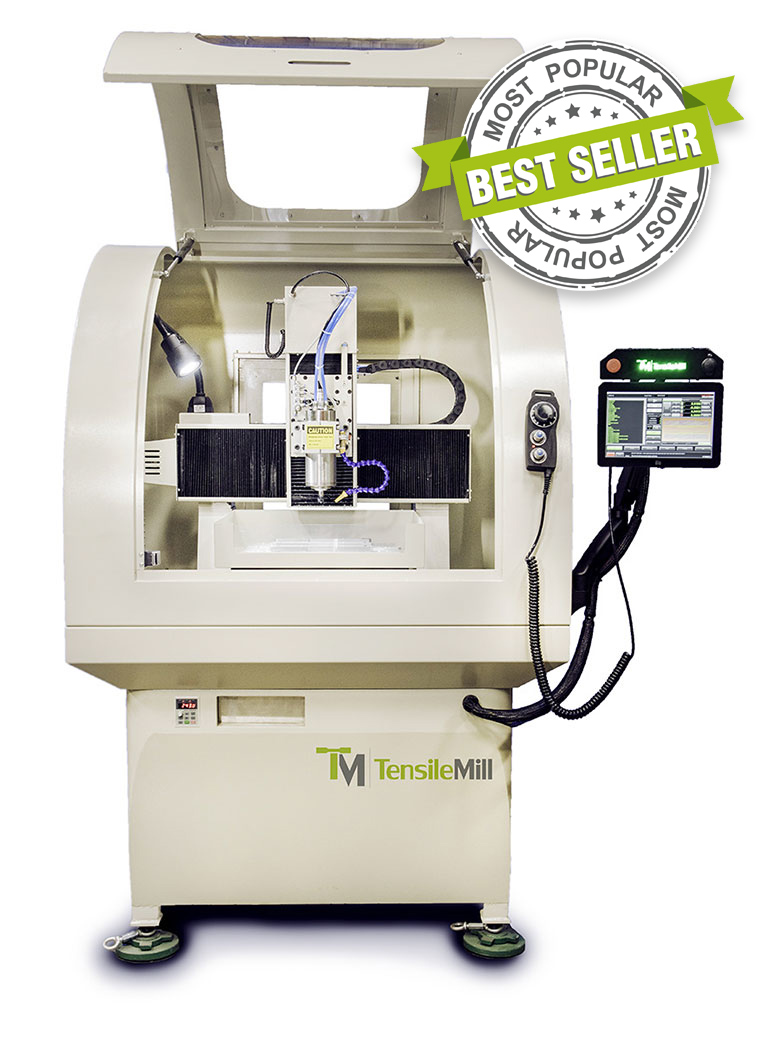

What Are the Key Differences Between the TensileMill CNC MINI and XL Machines?
The XL targets higher capacity and automation, while the MINI focuses on compact quality lab workflows. XL machines flat tensile blanks up to 1.0 in (25.4 mm) thick, the MINI handles up to 0.5 in (12.7 mm). XL uses a 5 hp (3.7 kW) spindle and includes an ISO 20 automatic tool changer with 5 tool positions; the MINI has a 2 hp (2.2 kW) spindle with a single tool, with an optional ATC upgrade. XL construction combines cast iron with a fabricated steel frame for added rigidity, while the MINI uses a cast iron structure.
Select the XL when you need multi step milling programs, reduced cycle time from automated tool changes, and consistent performance on thicker materials. It favors production floors and larger labs where throughput, durability, and multi tool routines such as roughing, finishing, and edge breaking are common. The MINI fits smaller QC labs and engineering groups preparing standard flat specimens in moderate volumes, where benchtop footprint, straightforward operation, and lower power draw are priorities. Both platforms produce accurate flat specimens, so the choice comes down to thickness range, program complexity, and available space.
If you would like to review dimensional specs and automation options, you can explore details on the TensileMill CNC XL page.
What Is the Maximum Hardness the TensileMill CNC XL Can Machine for Tensile Specimens?
With the standard cutting package, the XL routinely mills tensile specimens up to 40 HRC. For harder materials, a hardened-material upgrade with specialized tooling and programming supports many applications in the 45 to 50 HRC range, subject to sample thickness, cutter diameter, rigidity, and coolant strategy.
The upgrade typically pairs premium coated carbide end mills with adaptive toolpaths that keep radial engagement low, manage heat, and maintain constant chip load. Feeds and speeds are tuned for hardened alloys, often using flood or through-tool coolant to stabilize temperature and surface finish. Parts near 50 HRC are usually processed with staged roughing followed by a light finishing pass to achieve gauge width and shoulder radii. Very thick or wide blanks may require longer cycle times or alternate roughing approaches. If your workflow involves frequent cuts above 50 HRC, a brief application review helps us match tooling, programming, and fixturing to your specimens for predictable throughput and finish quality.
If you would like to review specifications, cutting packages, and upgrade options, you can learn more on the TensileMill CNC XL product page.
What Makes the TensileMill CNC XL Better Than Other Tensile Sample Preparation Machines?
The XL stands out for production throughput, repeatable accuracy, and an operator-friendly workflow built around a rigid 5 hp (3.7 kW), 10,000 rpm servo spindle with BT30 tooling. This combination cuts flat tensile specimens consistently across long runs with minimal setup time.
Tensile software, developed by TensileMill CNC, simplifies job creation through straightforward profile selection, editable tool libraries, and clear feeds and speeds control. BT30 quick-change tooling provides stable engagement and dependable concentricity, which helps hold gauge width, parallelism, and shoulder radii on parts prepared for methods such as ASTM E8 or ISO 6892. The servo drive maintains torque over a wide speed range, allowing efficient roughing and fine finishing on materials from aluminum to alloy steels. Facilities focused on high-volume prep benefit from shorter cycle times, less operator intervention, and consistent, standard-ready results from shift to shift.
If you would like to compare specifications, software features, and throughput options, you may review technical details on the TensileMill CNC XL product page.
What Parameters Can Be Programmed on the TensileMill CNC XL for Flat Tensile Sample Preparation?
The XL’s touchscreen software lets you program standard-based tensile geometries or fully custom profiles. A library of common ASTM, ISO, DIN, and JIS templates is preloaded, so you can start from an appropriate shape and then tailor the dimensions to your coupon and material.

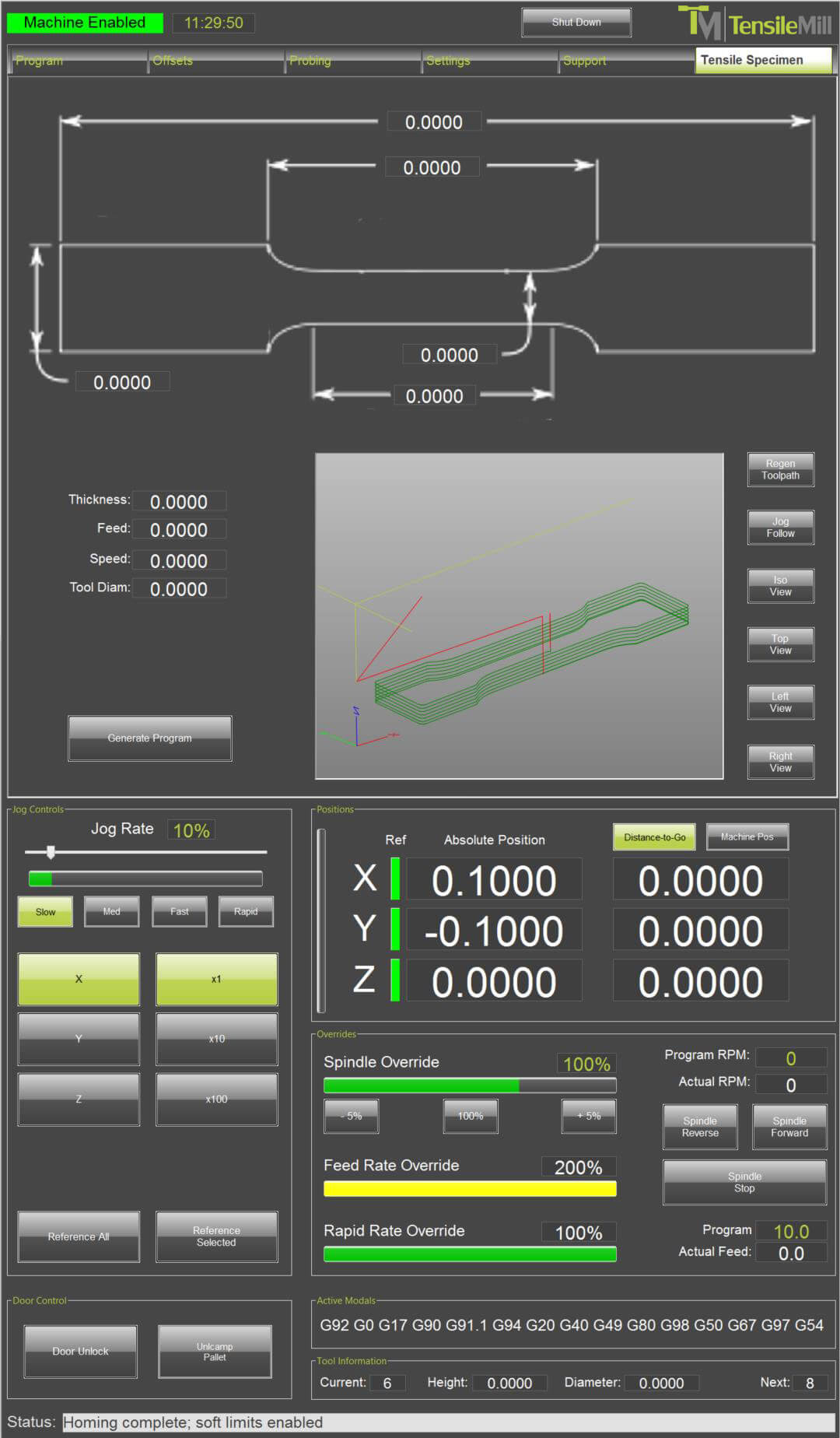

On the 21 in (533 mm) LCD touchscreen, an on-screen specimen diagram prompts you to enter fields such as gauge length, gauge width, thickness, fillet radius, shoulder width, and overall length. For plastics or composites, you may also select flat dumbbell styles commonly associated with methods such as ASTM D638 or ISO 527. Once entered, the setup can be named and saved for instant recall, duplication, and editing on future jobs.
Beyond standards-ready programming, the system also runs as a general CNC machining platform for non-standard coupons or ancillary features. You can define custom toolpaths, select tools, and set typical machining parameters to match your stock, fixturing, and throughput goals. This dual workflow helps labs move from standard specimens to special geometries without changing equipment.
If you would like a deeper look at software capabilities and specimen templates, you can review details on the TensileMill CNC XL product page.
How Many Tensile Specimens Can the TensileMill CNC XL Produce Per Day While Maximizing Machine Life?
The system is built for continuous duty and can operate 24 hours per day, 7 days per week. Daily output is driven by specimen geometry, material, toolpath strategy, fixture configuration, and operator changeover, not by a duty-cycle limit. With proper preventive maintenance and timely consumable replacement, the machine maintains long service life under high utilization.
For high throughput without shortening longevity, use stable feeds and speeds for each material, apply balanced toolpaths with appropriate stepovers and depths, and change cutters on a defined interval rather than waiting for edge failure. Keep coolant clean and at target concentration, clear chips frequently, and verify toolholder and collet runout. Warm up the spindle at the start of each shift, clean the work envelope daily, and follow the lubrication and inspection schedule in the manual. Multi-stack fixturing and the automatic tool changer help keep cycle time, not machine duty, as the gating factor. Consumables such as cutters, fixture liners, filters, and coolant are the primary wear items; the base platform is engineered for long, repeatable service in round-the-clock operations.
If you would like to review throughput options, fixtures, and maintenance planning, you can explore details on the TensileMill CNC XL product page.
What Are the Key Differences Between the TensileMill CNC MINI and XL Tensile Sample Preparation Machines?
Both platforms prepare flat tensile specimens, yet they target different workloads and lab environments. The XL accepts starting blanks up to 1.0 in (25.4 mm) thick, while the MINI is suited for blanks up to 0.5 in (12.7 mm). The XL is a larger, industrial machine for high throughput and oversized material, whereas the MINI’s compact footprint fits smaller quality labs and limited floor space.
Power and tooling also differ. The XL uses a 5 hp (3.7 kW) spindle that supports heavier cuts and faster cycle times. The MINI is equipped with a 2 hp (1.5 kW) spindle that is ideal for small batches and moderate materials. For automation, the XL ships with an ISO 20 automatic tool changer with 5 tool positions, enabling roughing, finishing, and edge breaking in one program. The MINI comes with a single-tool spindle and can be upgraded to an automatic tool changer if your workflow grows.
For longevity and stability, the XL combines a cast iron base with fabricated steel elements, while the MINI uses a robust cast iron construction. In practice, the XL favors multi-shift production and unattended operation, and the MINI favors quick setups, lower power cuts, and tight spaces.
If you would like to compare footprint, power, and automation details in depth, you can review specifications on the TensileMill CNC XL Large Flat Tensile Test Sample Preparation Machine product page.
What Clamping Fixture Options Are Available for the TensileMill CNC XL?
The XL platform supports three paths for flat coupon fixturing. The standard Double Clamping Fixture runs two stacks at once, accommodating blanks up to 12 in long, 2 in wide, and up to 1 in thick, with capacity dependent on material and tooling strategy (305 mm, 51 mm, 25.4 mm).
For higher throughput or sub-size specimens, the Triple Clamping Fixture adds a third station, handling up to 12 in long, 1 in wide, and up to 1 in thick (305 mm, 25.4 mm, 25.4 mm). The two side stations can be removed to open the center position for a thicker workpiece, which is helpful when alternating between thin sheet and heavier plate without reconfiguring the program.
When geometries fall outside standard flats, custom fixtures are available for sheet strips, tubes, and specialty profiles. These can be built with tailored clamping faces, adjustable stops, and hole patterns to match your shop’s workflow or automation. As a guideline, choose the Double fixture for wider coupons and moderate volume, select the Triple fixture for maximum parallel machining of regular and sub-size blanks, and opt for a custom fixture when part shape or handling requirements call for a purpose-built solution.
If you would like to compare fixture configurations and machine details, you can review the information on the TensileMill CNC XL product page.
What Comes Standard With the TensileMill CNC XL Flat Tensile Sample Preparation Machine?
The XL ships as a turnkey flat-specimen machining system configured to your application. The standard package includes base workholding and clamping fixtures, an ER collet set, starter carbide end mills, and the ISO 20 spindle upgrade. Your machine is built against your supplied material and geometry requirements, so the included tooling and fixtures arrive matched to your blank sizes and typical gauge section profiles.
As an upgraded version of our Classic platform, the XL package is prepared for immediate sample production. ER tooling supports quick tool swaps, and the included fixtures provide stable clamping for repeatable machining of flat tensile specimens prior to polishing and testing. If your lab needs specialized fixturing or custom cutters, the scope can be finalized during the application review to match your workflow.
If you would like a closer look at configurations or accessories, you can review package details on the TensileMill CNC XL product page.
What Are the Unique Advantages of the TensileMill CNC XL for Flat Tensile Specimen Preparation Compared With the Classic and MINI Models?
Compared with the Classic and MINI flat-specimen systems, the XL adds higher workpiece capacity, a more rigid frame, and a standard automatic tool changer that streamlines tensile sample preparation with fewer manual steps.
If you machine larger blanks or harder alloys, the XL’s heavier construction supports bulkier fixturing and reduces vibration, so roughing and finish passes hold neck and gauge tolerances with fewer setups. The integrated ATC swaps between roughing mills, finish end mills, drills, and chamfer tools without manual changes, which compresses cycle time and supports repeatable batch runs. The control software provides template-driven programming for flat specimens to common geometries used in standards such as ASTM E8 or ISO 527, and it also handles general CNC milling for jigs and ancillary lab parts. For ongoing operation, cutters, toolholders, fixtures, polishing media, and replacement components are available directly from TensileMill CNC through our consumables and spare parts program or by requesting a quick quote.
If you would like to compare specifications and software options, you can review details on the TensileMill CNC XL product page.
What Additional Maintenance Steps Extend the Life of a Tensile Sample Preparation Machine?
Routine preventive maintenance and a clean workspace go a long way. Keep the lubrication reservoir topped with the recommended oil, wipe down exposed surfaces, and remove chips after each shift to reduce wear on moving components and guarding.
For daily care, vacuum chips instead of blowing them into seals, clear the chip tray, and dry any coolant residue on the table, vises, and fixtures. Confirm that the automatic lubrication system is cycling and that lines are intact. Inspect the spindle taper and tool holders for debris, then lightly clean and re-seat them to protect runout. Keep the coolant or mist system clean by using approved fluids and replacing filters as needed. Periodically check way covers, door interlocks, cable carriers, and the condition of belts, fasteners, and guarding. Verify that the air supply is clean and dry to protect valves and actuators. Back up machine parameters and software, and record service actions in a simple log so you can spot trends. Train operators to run a brief warmup program at start of day, handle specimens and tooling carefully, and report any unusual noise, heat, or vibration immediately.
If you would like maintenance guidance tailored to your setup or a recommended service interval, you can connect with our team on the Contact Us page.
What Daily Tensile Sample Throughput Can the TensileMill CNC XL Run While Maximizing Machine Life?
The XL platform is built for continuous duty. With routine tooling changes and preventive maintenance performed per the manual, it can operate around the clock, so daily throughput is set by material, blank size, and specimen geometry rather than a fixed machine cap.
High-volume labs often schedule multi-shift production, leveraging the 10-station BT30 changer and a 5 hp (3.7 kW) spindle to rough and finish in one program while the maximum feed rate of 1000 ipm (25.4 m/min) shortens cycle time. Working travels of 15.7 in × 9.1 in × 15.7 in (400 mm × 230 mm × 400 mm) and a 330 lb (150 kg) table capacity support multi-up stacks and heavier fixtures for steady output. To protect longevity during continuous operation, evacuate chips daily, monitor coolant and air supply condition, follow the lubrication and inspection intervals in the PM schedule, replace cutters and collets at planned counts or when finish degrades, and keep the spindle taper and workholding clean. Keeping spare cutters, belts, filters, and other wear items ready helps maintain uninterrupted production without adding stress to the system.
If you would like to review sizing, duty cycle considerations, and technical details, you can explore the TensileMill CNC XL product page for a deeper look at specifications and options.
What Is the Maximum Rockwell C Hardness the TensileMill CNC XL Can Machine?
The TensileMill CNC XL, in its standard package, machines flat tensile specimens up to 40 HRC. For 45 to 50 HRC, upgrades are recommended, including specialized tooling and program strategies. Practical limits also vary with specimen thickness and material grade.
For hardened steels above 40 HRC, expect reduced feed rates, shallow axial engagement, and additional passes to manage heat and tool wear. Thinner blanks and smaller cross sections are easier to machine, while thicker sections increase cutting forces and may require staged roughing and finishing, flood or high pressure coolant, and tighter stepover control. Sharing part hardness, thickness, width, and lot size with our engineers allows the package to be tuned, from cutter selection to fixturing and spindle parameters, so your cycle time and surface quality align with specimen preparation needs.
If you would like to review configurations and technical details, you can learn more on the TensileMill CNC XL equipment page.
What Is the Maximum Tensile Specimen Length the TensileMill CNC XL Can Machine?
In a single setup, the longest flat tensile specimen you can machine on the TensileMill XL is governed by the X-axis travel. The XL provides 15.75 in of X travel (400 mm), so practical maximum specimen length is up to about 15.0 to 15.75 in (381 to 400 mm) after accounting for clamping and tool lead-in. The working envelope is 15.75 in × 9.10 in × 15.75 in (400 mm × 230 mm × 400 mm).
For most workflows, you load sheet or stacked coupons, orient length along X, and use the Y travel for nested widths and multiple stacks. Z travel supports thicker blanks and multi-stack fixtures. If an occasional part exceeds this length, you may machine it in two operations using a dowel-pin re-locate. The XL's high-torque spindle and dedicated tensile software support high-volume preparation while holding the geometry required by common flat standards such as ASTM E8 or ISO 6892, depending on your chosen fixture.
If you would like to review travel dimensions, fixturing choices, and software options, you can learn more on the TensileMill CNC XL product page.
What Sets the TensileMill CNC XL Apart From Other Tensile Sample Preparation Manufacturers?
The XL is purpose-built for high-volume flat specimen machining, pairing production-grade hardware with a tensile-specific software workflow. This combination delivers consistent geometry, short setup times, and repeatable results across demanding lab and shop environments.
A 5 hp (3.7 kW) servo spindle running up to 10,000 rpm, a BT30 interface, and a 10-tool automatic changer support roughing, finishing, chamfering, and marking in a single program. Rapid moves up to 1,000 ipm (25.4 m/min) reduce non-cut time, while the rigid cast-iron structure and precision ballscrews promote tight tolerances and smooth shoulder radii. The Tensile software interface provides preloaded tensile profiles, including common geometries such as ASTM E8 and ISO 6892-1, so operators select a template, input thickness and width on the touchscreen, and save settings for future batches. Multiple fixturing options accommodate stacked blanks for throughput gains, and the worktable supports up to 330 lb (150 kg) for heavier stock. Compared with general-purpose CNC machines or outsourced prep, the XL arrives configured for tensile work, cutting programming time, scrap, and per-sample cost.
If you would like deeper technical details or to compare fixturing options, you can review the TensileMill CNC XL product page for specifications and software highlights.
What Standards Can Be Programmed on the TensileMill CNC XL for Flat Tensile Specimen Preparation?
The XL software ships with a library of preloaded tensile templates covering common ASTM, ISO, DIN, and JIS geometries. Typical examples include ASTM E8 and ISO 6892-1 for metals, as well as ASTM D638 and ISO 527 for plastics. Operators can run these profiles as provided or edit dimensions to match material thickness, gauge width, and grip length.
Through the 21 in (533 mm) LCD touch interface, you can add new standard sets or custom geometries by tapping the on-screen specimen sketch and entering the required measurements. The machine generates the toolpath automatically, stores each profile as a reusable template, and allows single-tap recall for repeat jobs. Because the platform also operates as a full CNC machining center, you can switch between tensile sample preparation and conventional milling in the same setup using conversational cycles or imported G code. Labs typically build a library by alloy or polymer family, lock in feeds and speeds with the chosen cutters, then run batches with consistent surface finish ready for polishing.
If you would like to compare software features and capacity options, you can review specifications on the TensileMill CNC XL product page.
How Many Tensile Specimens Can Be Prepared Per Cycle?
Throughput per cycle varies by material, specimen geometry, and workholding. On flat CNC tensile systems, you can machine a single coupon in one setup or run a batch using multi-station clamps, fixture plates with nesting, or stacked blanks when thickness and rigidity allow.
The achievable count depends on thickness and hardness, which influence cutter engagement, pass strategy, and allowable stack height. Standards such as ASTM E8 or ISO 6892 define gauge length and width, which dictate part spacing and fixture pocket layout. Tough alloys and thicker stock increase cycle time and often favor one-up machining with separate rough and finish passes, while thinner sheet and softer metals suit nested batches that deliver higher parts per hour. Tool diameter, corner radii, coolant delivery, and changeover method also affect real-world yield. If you share your alloy, initial blank size, thickness, and target standard, our team can provide an application-specific parts-per-cycle and hourly throughput estimate.
If you would like to compare batch fixturing and table sizes, you can review models and options on the Flat Tensile Test Sample Preparation Machines page to learn more about throughput planning.
What Types of Base Fixtures Are Available for Tensile Sample Preparation Machines?
Flat tensile preparation systems from TensileMill CNC are supplied with a stainless steel base fixture tailored to the specimen geometry in your method library. Optional clamping fixtures expand the holding envelope for different blank lengths, covering approximately 15 in down to 4 in (381 mm to 102 mm). Each package also includes an ER collet and carbide end mills, with only the cutters considered routine consumables.
The base fixture is built for long service life and resists wear in high-throughput labs. It is configured to support common flat specimen profiles used in standards such as ASTM E8 for metals, ISO 6892-1, and ASTM D638 for plastics when applicable to your workflow. When your starting blank length changes, selecting the matching clamping fixture maintains full contact and stable clamping, which helps hold gauge-width tolerance and finish quality during milling. End mill life ranges from weeks to months based on part volume, material hardness, and blank thickness, so keeping a small stock of our coated carbide tools helps prevent unplanned downtime.
If you would like to compare fixture options or check current availability, you can review details on the Tensile Sample Preparation Consumables, Fixtures, and Spare Parts page.
What Is the Typical Lifespan of End Mills for TensileMill CNC Milling Machines?
Tool life varies because it depends on material hardness, blank thickness, toolpath strategy, coolant use, and spindle setup. Our systems ship with specialty carbide end mills in bright finish or Alcrona Pro coating that are engineered for tensile specimen machining. In production labs, these cutters commonly deliver extended service across multiple batches, including high-throughput programs, but there is no single hours-or-parts figure that applies to every application.
For the longest life, match the geometry and coating to the workpiece: bright finish for aluminum and other nonferrous materials, AlCrN-type coatings such as Alcrona Pro for steels, stainless, and nickel alloys. Use conservative radial engagement, climb milling on profiles, ample coolant, and rigid fixturing. Keep spindle runout at or below 0.001 in (0.025 mm). Replace a cutter when surface finish begins to dull, burrs increase, spindle load trends upward, or edge wear and micro-chipping become visible under magnification. Keeping a spare set of identical tools on hand helps maintain consistent specimen quality and uptime.
If you would like application-specific tooling guidance or to review stocked options, you may explore the Consumables and Spare Parts page for end mills matched to our sample preparation machines.
How Do Flat Tensile Specimen Machines Keep the Gauge Section Centered During Two-Sided Machining?
Symmetry is achieved with a one-setup flip process that keeps the blank registered to the same clamping faces for both passes. The machine completes the first side, pauses, and the operator rotates the fixture while the work offset and datums remain unchanged. The second operation runs a mirrored toolpath around the same centerline, so the gauge section stays centered and thickness remains uniform.
Dedicated reference surfaces in the fixture control X and Y location, while the clamping stack maintains Z datum, preventing drift that commonly appears when parts are reindicated on manual equipment. Matching step-downs, cutter paths, and feed strategies for both sides keep cutting forces balanced, which helps avoid taper, bow, or offset shoulders. The same workflow applies to multi-part fixtures or stacked blanks, so every coupon in the set carries the same geometry. For labs preparing flat specimens to ASTM E8 or ISO 6892, this approach supports gauge section alignment and parallelism requirements without extra setup time.
If you would like to compare fixturing and workflow options, you can review model details on the Flat Specimen Preparation Equipment Lineup page.
What Does the Flip-Jig Fixture Do in Two-Sided Tensile Specimen Machining?
The flip-jig is a dedicated workholding fixture that clamps the specimen blank for two-sided milling, keeps the centerline aligned, and preserves the work offset during rotation. By holding the blank in a consistent datum, it allows the part to be rotated when prompted by the software without changing the machining origin.
In practice, you clamp the raw blank, machine the first side, then rotate the part 180 degrees within the same fixture when the program prompts a flip. Because the datum remains constant, the controller continues from the same zero, which reduces thickness mismatch, shoulder radius offset, and gauge-section runout compared with manually re-centering on a general-purpose CNC. The result is tighter correlation between faces, faster changeovers, and stable parallelism across batches.
One flip-jig is supplied with the system and is selected to match expected specimen length. Available sizes include 4 in (101.6 mm), 8 in (203.2 mm), and 12 in (304.8 mm). Selecting the correct size matches the clamping span to the blank, improving stability and surface finish on thin or long samples.
If you would like to compare compatible systems and fixturing options, you can review details on the Flat Tensile Test Sample Preparation Machines page.
How Many Steps Are Required to Prepare One Flat Tensile Specimen on a TensileMill CNC?
Most users complete one flat tensile specimen in five steps. Select the standard or custom profile on the touchscreen, clamp the blank in the flip fixture against the alignment stop, start the first-side program, rotate the flip fixture when prompted without re-centering, then resume the cycle to machine the second side.
The built-in library covers common profiles such as ASTM E8 or ISO 527, so dimensions are loaded once and stored for repeat runs. Toolpaths, spindle speed, and motion control are automated, which keeps operator involvement to alignment and the single flip. The fixture datum preserves registration between sides, producing consistent gage width and surface finish for reliable tensile results across batches.
If you would like to compare model options for flat specimen machining, you can review capabilities on the Flat Specimen Preparation Equipment Lineup page.
How Is the Flood Coolant System Maintained and Refilled?
Our flat-specimen machining systems use a recirculating flood coolant housed in the machine base, so all plumbing, filtration, and return flow stay inside the enclosure. Routine care focuses on fluid level, concentration, and chip control to keep cut quality and pump life stable in a lab setting.
To refill, open the sump access inside the enclosure and add premixed water-soluble coolant until the sight gauge or fill mark is reached. Typical lab units hold about 10 gal (37.9 L). After filling, run the pump briefly to verify steady return flow to the tank. For day-to-day operation, top off with the same premix rather than straight water to avoid diluting the blend.
Maintenance includes checking concentration with a refractometer and adjusting with concentrate or water per the coolant manufacturer’s chart, cleaning the intake screen and return tray so chips do not starve the pump, and skimming tramp oil as needed. Plan full tank cleanouts on a usage-based interval, for example every few months, which includes draining, wiping sediment, flushing lines, and replacing disposable filters if fitted. No external coolant supply is required, which keeps service simple for laboratories and small production cells.
If you would like a model-by-model look at coolant features for our flat specimen mills, you can review details on the Flat Tensile Test Sample Preparation Machines page.
Is In-House Tensile Specimen Preparation More Cost-Effective Than Outsourcing?
For labs with steady testing, in-house preparation typically reduces total cost after the initial equipment purchase, because the marginal cost per specimen becomes far lower than paying per batch externally. For occasional or sporadic testing, outsourcing can be practical since there is no upfront capital spend.
Outsourcing carries variable charges that repeat with every order: setup and machining fees, packaging, two-way shipping, potential rush charges, and idle time while parts are in transit. Those costs scale directly with demand and can rise with tighter tolerances or special profiles for standards such as ASTM E8 or ISO 527. If rework is needed, the cycle repeats.
In-house shifts spending to a fixed asset plus predictable items like cutters, inserts, coolant, and routine maintenance, along with operator time. Once a flat or round specimen system is installed, the next sample mainly reflects tool wear and minutes of machine time, and adjustments happen immediately without courier delays. Facilities running regular production checks, R&D iterations, or academic coursework usually see per-specimen cost drop as throughput increases, especially when using batch cycles or multi-part fixtures to machine multiple blanks in one run.
If you would like to discuss throughput, staffing, and payback for your lab, you can connect with our team on the Contact Us page.
How Do I Choose Between Flat and Round Tensile Specimen Preparation Systems?
Start with your material form and the target geometry required by your test method. Flat preparation is ideal for sheet, plate, or molded panels, commonly used for ASTM E8 metals or ISO 527 plastics. Typical flat dog-bone sizes include 0.25 to 1.00 in (6 to 25 mm) gauge width with 1.00 to 2.00 in (25 to 50 mm) gauge length and 0.125 in (3.2 mm) fillet radii. Round preparation suits bar, rod, wire, or cast buttons, with frequent sizes of 0.250 to 0.500 in (6 to 13 mm) diameter and 2.00 to 4.00 in (50 to 100 mm) gauge length. Target tolerances often hold ±0.001 in (±0.025 mm) in the gauge section and 0.001 in TIR (0.025 mm) concentricity for round specimens.
Consider throughput and handling. For high coupon volumes across multiple alloys, a fixtured flat CNC system supports repeatable nesting and quick changeovers. For rounds, a programmable lathe-style machine with tailstock support and center drilling maintains straightness on longer pieces, for example 6 to 12 in (152 to 305 mm) overall length, while flood or mist coolant protects both metals and polymers.
Confirm UTM and grip compatibility early. Flats pair well with wedge or pneumatic grips using 1 to 2 in (25 to 50 mm) jaw widths. Rounds may require collets, shoulders, or threaded ends such as 0.500-20 UNF, with shoulder perpendicularity within 0.002 in (0.05 mm). Surface finish affects results, so polish the gauge section longitudinally to Ra ≤ 32 µin (0.8 µm), or to 16 µin (0.4 µm) for notch-sensitive materials, and verify dimensions against the selected standard during first-article inspection.
If you are comparing flat and round preparation solutions, you can explore the TensileMill CNC Homepage to review product families on the page.
How Do I Choose Between Flat and Round Tensile Specimen Preparation Systems?
Selection depends on your product form, the governing standard, and downstream gripping. For sheet, plate, and extrusions, a milling-based system produces flat coupons to ASTM E8/E8M or ISO 6892-1 for metals, and ASTM D638 or ISO 527 for polymers. For bar, rod, and forged stock, a lathe-style system machines round specimens, typically 0.500 in (12.5 mm) nominal diameter with 2.00 in (50 mm) gauge length for ASTM E8, or subsize options when thickness limits the section.
Consider precision and finish. Flat machining supports tight edge tolerance around ±0.001 in (±0.025 mm) and surface finish near 32 µin Ra (0.8 µm) when tooling is sharp. Turning round specimens makes concentricity and straightness easier to control, often within 0.001 in (0.025 mm) TIR, which reduces bending errors. If your lab needs a mirror finish for strain extensometers, plan on a polishing pass to achieve 16 µin Ra (0.4 µm) or better.
Throughput and fixturing also matter. Flat systems can fixture multiple blanks per cycle, which is efficient for sheet from 0.020 to 0.250 in (0.5 to 6.0 mm) thickness. Round systems suit continuous runs from 0.125 to 1.000 in (3.2 to 25.4 mm) diameter bar. Verify your UTM grip style, wedge grips for flat widths like 0.500 in (12.5 mm) or collet or threaded holders for round shoulders, and confirm overall length, for example 6.0 to 10.0 in (152 to 254 mm), matches the machine and standard.
For additional guidance, you can connect with our team on the Contact Us page.
How Do I Choose the Right Flat Tensile Sample Preparation Machine for ASTM E8, ASTM D638, or ISO 527 Work?
Start with your material range and blank size. If most coupons come from sheet, a compact work envelope such as 12 in × 12 in (305 mm × 305 mm) is efficient. For plate cutting or multiple-up nesting, consider larger travels, for example 24 in × 36 in (610 mm × 914 mm). Match spindle power and tooling to your thickness, such as 0.020 in to 1.50 in (0.5 mm to 38 mm), and plan for tool diameters from 0.0625 in to 0.375 in (1.6 mm to 9.5 mm).
If you would like to compare sizes, options, and workflows side by side, you can review model details on the Flat Tensile Test Sample Preparation Machines page.
How Do I Choose the Right Flat Tensile Specimen Preparation System for My Throughput and Materials?
Start by quantifying volume and changeover frequency. If one profile takes about 3 minutes of cut time plus 1 minute of handling, stacking 3 blanks per cycle yields roughly 45 specimens per hour. Look for rigid fixturing that supports stacked thickness targets, for example 0.50 in (12.7 mm) total, and verify chip evacuation so buried layers do not overheat or burr.
Match cutting strategy to material. Typical starting surface speeds are 600–1000 SFM (183–305 m/min) for aluminum, 150–300 SFM (45.7–91.4 m/min) for carbon steel, 100–200 SFM (30.5–61.0 m/min) for stainless, and 80–120 SFM (24.4–36.6 m/min) for hardened alloys with TiAlN-coated carbide. Use 0.0015–0.004 in (0.038–0.102 mm) per-tooth feed and shallow stepdowns of 0.02–0.06 in (0.50–1.50 mm) to control heat and edge quality on the gauge section.
Select software that locks in specimen geometry from a standards library and exports a run record. For metals reference ASTM E8 or ISO 6892-1, and for plastics reference ASTM D638 or ISO 527. Aim for a uniform gauge finish of 63 µin Ra (1.6 µm) or better, and plan a light final pass of about 0.005 in (0.13 mm) to remove tool marks and minimize burrs. For thin sheet, a vacuum table with a sacrificial backup of 0.25 in (6.35 mm) improves flatness and edge integrity.
For labs with frequent size changes, an automatic tool changer and quick-swap jaws reduce cycle losses, while larger work envelopes support multi-up fixtures that increase hourly output without adding operators.
If you want a side-by-side look at compact and full-size options, you can review model details on the Flat Specimen Preparation Equipment Lineup page.
How Do I Select the Right Flat Tensile Specimen Preparation Machine for Metals, Composites, and Polymers?
Start by matching expected material range and blank size to the work envelope and clamping options. For typical flat coupons, ensure the machine accommodates blank thickness from 0.02 to 0.50 in (0.5 to 12.7 mm) with rigid parallel clamping. If you process hard alloys, confirm cutter stability and spindle torque suitable for up to 60 HRC, plus coolant delivery and effective chip evacuation for stainless and nickel grades. For composites and polymers, prioritize dust extraction and heat control.
Define accuracy targets based on your lab’s method. Many teams aim for gauge width tolerance of ±0.002 in (±0.05 mm), shoulder radius within ±0.005 in (±0.13 mm), and edge burr less than 0.002 in (0.05 mm) to reduce notch effects. When preparing metals to ASTM E8 or ISO 6892, or plastics to ASTM D638 or ISO 527, verify that the software can call standard geometries, edit dimensions, and lock feeds to prevent operator deviation.
Evaluate throughput and automation that actually save minutes per coupon. Look for a probing routine to locate blanks, a tool changer with finishing and roughing tools, and fixtures that allow stacking within the travel area, for example 8 in × 12 in (203 mm × 305 mm). A practical workflow includes a rough pass, a finish pass at reduced step-over, and a light deburr or polish to reach an Ra near 63 µin (1.6 µm) for metals, while using lower surface speeds on polymers to avoid heat-affected edges.
If you would like to compare sizes, controls, and automation options, you can review detailed options on the Flat Specimen Preparation Equipment Lineup page.
What Dimensional Tolerances And Surface Finish Are Recommended For Flat Tensile Specimens Prepared By CNC Milling?
For metallic coupons prepared to ASTM E8/E8M or ISO 6892-1 geometry, most laboratories target reduced-section width and gauge length within ±0.002 in (±0.05 mm), overall length within ±0.010 in (±0.25 mm), and gauge flatness within 0.002 in (0.05 mm). Aim for a surface finish of 32–63 µin Ra (0.8–1.6 µm) on the gauge section to support stable extensometer contact and consistent strain. Break all edges lightly, about 0.005–0.010 in (0.13–0.25 mm), and remove burrs without narrowing the net width. Shoulder radii should follow the selected standard; where custom, hold radius mismatch under 0.002 in (0.05 mm).
Use stable fixturing on a rigid sacrificial backer, then rough and finish. A typical finishing pass removes 0.010–0.020 in (0.25–0.50 mm) per side with climb milling to minimize recast and burr formation. Keep the work below 150 °F (65 °C) with flood coolant or MQL so temper or residual stresses are not altered. Fresh carbide end mills around 0.250 in (6.35 mm) handle shoulders efficiently, with smaller tools near 0.125 in (3.18 mm) for tight radii.
Verify width at three locations in the gauge using a micrometer with 0.0005 in (0.01 mm) resolution, confirm straightness and parallelism with a granite square or indicator, and document actual dimensions on the traveler before polishing. For plastics per ASTM D638 or polymers to ISO 527, use the same approach, but prioritize lower heat input and gentler edge breaks to avoid notch sensitivity.
If you would like to compare capacities, controls, and footprints, you can review model details on the Flat Specimen Preparation Equipment Lineup page.
How Do I Choose The Right Flat Tensile Specimen Preparation Machine For ASTM E8 Or ISO 527 Workloads?
Start by matching your material mix and blank thickness to the equipment class. For sheet and thin plate in the 0.020–0.060 in (0.5–1.5 mm) range, a compact system with vacuum workholding and a built-in template library efficiently mills subsize coupons with 2.0 in (50 mm) or 1.0 in (25 mm) gauge lengths. For thicker sections up to 1.00 in (25 mm), a rigid floor machine with higher torque and an automatic tool changer maintains stable cycle times and tool life.
Confirm the machine can hold the tolerances your method requires. Flat tensile coupons for metals and polymers commonly target width and thickness within ±0.002 in (±0.05 mm), straightness within 0.004 in per 6 in (0.10 mm per 150 mm), and a smooth gauge section that avoids notch initiation. A finish of 63 µin Ra (1.6 µm Ra) or better in the gauge length is a practical benchmark. Preloaded libraries for ASTM E8, ISO 527, or ASTM D638 reduce programming risk while still allowing custom geometries.
Evaluate fixturing and process controls. Vacuum or magnetic fixtures excel for thin stock under 0.080 in (2.0 mm); mechanical vises or step clamps suit thicker blanks up to 1.00 in (25 mm). Use appropriate coolant to manage heat and burrs in stainless or nickel alloys, and sequence roughing, semi-finish, then finish passes so final dimensions settle before the contour cut.
If you would like to compare models and review specifications, you can explore options on the Flat Specimen Preparation Equipment Lineup page.
How Many Flat Tensile Specimens Can The XL Prepare At Once, And What Are The Best Practices For Stacking?
With the standard double clamping fixture, the XL can machine two stacks of blanks up to about 12 in (305 mm) long, 2 in (51 mm) wide, and up to 1 in (25.4 mm) thick, material dependent. The optional triple fixture supports three stacks up to about 12 in (305 mm) long, 1 in (25.4 mm) wide, and up to 1 in (25.4 mm) thick. Ensure the combined workholding load remains within 330 lb (150 kg). The work envelope of 15.75 in × 9.1 in × 15.75 in (400 mm × 230 mm × 400 mm) provides ample travel for most ASTM E8 and ASTM A370 flat specimens.
For consistent results, square all blanks to a common datum, use parallels or ground spacers to keep stacks co-planar, and touch off the top surface after clamping. Leave a small finish allowance, about 0.010 in (0.25 mm), on the gauge section and radius transitions to achieve final dimensions and surface finish on the last pass. Verify the gauge length, width, and fillet radii against the selected standard before the finishing cycle.
To maximize throughput, rough both stacks with adaptive toolpaths, then finish critical profiles with climb milling. A 5 hp (3.7 kW), 10,000 rpm spindle and feed capability up to 1000 ipm (25.4 m/min) allow aggressive roughing while maintaining a light finishing pass for dimensional control. The tensile software’s built-in libraries for common geometries help maintain compliance and minimize programming time for repeat jobs.
If you would like capacity details and fixturing options, you can review the TensileMill CNC XL on the product page for specifications and examples.
What Workholding And Toolpath Strategies Maximize Throughput For Large Flat Tensile Specimens?
For plate thicker than 0.25 in (6.35 mm), mount blanks to the T-slots with low-profile step clamps and hardened parallels. For thin sheet at or below 0.125 in (3.2 mm), use a vacuum fixture or sandwich the sheet between carrier plates to suppress chatter. The 330 lb (150 kg) table load and travels of 15.75 in × 9.1 in × 15.75 in (400 mm × 230 mm × 400 mm) support multi-part nests while keeping fixtures compact and repeatable.
Use an adaptive roughing strategy with 35 to 45 percent step-over and 0.08 to 0.12 in (2.0 to 3.0 mm) axial engagement to control heat and tool wear. Leave 0.010 to 0.020 in (0.25 to 0.50 mm) per side, then finish in a single climb pass at 5 to 10 percent step-over. Target about 32 microinch Ra (0.8 µm). Apply a shallow 1.5 to 3 degree ramp entry, maintain constant chip load, and avoid full-width plunges. Space coupons at least 0.12 in (3.0 mm) apart, add 0.04 in (1.0 mm) tabs on long, thin geometries, then remove tabs with a light contour to preserve edges.
Blend transitions to the reduced section using the fillet radius defined by your drawing per ASTM E8 or ISO 6892 when applicable, and deburr without altering width or gauge length. Verify dimensions with calibrated instruments, document feeds and tools, and save proven programs so the machine repeats results lot to lot. With a well-organized tool changer and standardized nests, setup time per batch drops significantly on this equipment.
If you would like to compare capabilities and review specifications, you can explore the TensileMill CNC XL on the product page.
Which Fixturing Options Best Support High-Volume Flat Tensile Specimen Machining?
The standard double clamping fixture holds two stacks per cycle, typically up to 12 in (305 mm) long, 2 in (51 mm) wide, and as thick as 1 in (25.4 mm) depending on material and tooling. The optional triple clamping fixture supports three stacks per cycle, commonly up to 12 in (305 mm) long and 1 in (25.4 mm) wide, with the side stations removable to accommodate a thicker center stack. Custom fixtures are available for sheet strips, irregular blanks, or tubular profiles.
For narrow or sub-size coupons to ASTM E8 or ISO 6892-1, the triple fixture maximizes throughput while maintaining rigidity. For wider coupons or harder alloys, the double fixture provides greater jaw contact. Use fixed end-stops and dowel references to keep gauge length and shoulder transitions repeatable, then run a light finish pass of about 0.010 in (0.25 mm) per side to hit width within ±0.002 in (±0.05 mm). Aim for edge burr under 0.005 in (0.13 mm) and a surface finish near 63 µin Ra (1.6 µm) in the gauge section to reduce stress risers.
Tighten clamping bolts uniformly, typically 12 to 18 ft·lbf (16 to 24 N·m) depending on jaw style and material, and use sacrificial backing to protect gauge edges. Verify gauge length, width, and fillet radii per the applicable standard, such as ASTM E8 for metals or ISO 527 for plastics, before releasing parts to the UTM.
If you would like to compare fixture configurations and stacking capacity, you can review details on the TensileMill CNC XL equipment page.
How Does The XL Machine Ensure Dimensional Accuracy And Surface Finish When Stacking Flat Tensile Blanks?
The large-format system supports stacked machining with dedicated double or triple fixtures. Typical setups hold two stacks up to 12 in × 2 in × 1 in (305 mm × 51 mm × 25.4 mm) or three stacks up to 12 in × 1 in × 1 in (305 mm × 25 mm × 25.4 mm). With X, Y, Z travels of 15.75 in × 15.75 in × 9.1 in (400 mm × 400 mm × 230 mm), a 5 hp (3.7 kW) spindle to 10,000 rpm, and servo control, the machine keeps paths consistent across layers.
For repeatable geometry, clock the fixture to the spindle centerline, sweep the top stack with an indicator to within 0.001 in (0.025 mm), and use matched parallels or step spacers so all blanks sit coplanar. Apply balanced clamping and add a sacrificial backer under the stack to control breakthrough burrs. When preparing ASTM E8 or ISO 6892-1 specimens, select the correct template, then verify the programmed gauge width and shoulder radii against your lab’s drawing before running production.
Use a roughing toolpath with climb milling and radial step-over of 0.03–0.06 in (0.8–1.5 mm). For steels start near 200–400 SFM (61–122 m/min), for aluminum 600–900 SFM (183–274 m/min), adjusting by material and tool. Finish with a 0.005–0.010 in (0.13–0.25 mm) radial skim pass, flood coolant, and a light deburr of 0.003–0.005 in (0.08–0.13 mm). These practices typically hold ±0.002 in (±0.05 mm) on gauge width and achieve Ra 32–63 µin (0.8–1.6 µm), suitable for compliant coupon surfaces.
If you would like deeper technical details and fixture options, you can review specifications on the TensileMill CNC XL equipment page.
What Fixturing And Programming Practices Boost Throughput On Large Flat Tensile Sample Machines?
Use a dedicated fixture plate that covers most of the table and accepts hardened locating pins on a 2.00 in (50 mm) grid. Add a sacrificial backer, typically 0.25 in (6 mm) thick, to protect slots and permit full-profile breakout. For high-volume work, a vacuum chuck or low-profile toe clamps minimize tool interference. Keep tool stickout under 1.5 times the cutter diameter, and stack blanks only to the point where cutting forces and chip evacuation remain stable, often up to about 1.0 in (25 mm) total height for common alloys.
Program a two-stage strategy for ASTM E8 or ISO 6892-1 dog-bones. Rough with a radial step-over of 40 to 60 percent, leaving 0.010 to 0.020 in (0.25 to 0.50 mm) stock. Finish with climb milling and a light pass of about 0.005 in (0.13 mm). Use ramped entries at 2 to 5 degrees to reduce burrs, and maintain coolant flow for edge integrity. For polymers that follow ASTM D638 or ISO 527, reduce spindle load and use sharper tools to limit heat.
Standardize work offsets with probing, then add an automatic chamfer or deburr path of about 0.010 in (0.25 mm). Verify the gauge width, fillet radii, and parallelism against your method standard, aiming for consistent burr height below 0.002 in (0.05 mm) across the stack.
If you are planning high-volume flat specimen milling, you can review technical details on the TensileMill CNC XL equipment page to learn more about capabilities and options on the product page.
How Should Labs Choose Between Flat-Specimen and Round-Specimen CNC Equipment For ASTM E8 and ISO 6892 Programs?
Start with your incoming material and governing standard. Sheet, strip, and plate typically drive a milling-type system for dog-bone coupons, while bar, rod, and machined components favor a lathe-style system for round bars. If the specification calls for a proportional round sample or threaded ends, a round-specimen machine is the efficient path. When standards permit either form, choose the geometry that best represents the product form and simplifies measurement for your team.
Match machine capability to tolerances and finish targets. A good benchmark for flat coupons is ±0.002 in (±0.05 mm) on width and thickness with smooth fillet transitions. For round bars, plan for diameter control within ±0.0015 in (±0.04 mm) and concentricity near 0.001 in (0.025 mm). Many labs target Ra 32–63 µin (0.8–1.6 µm) in the gauge, achieved with sharp tooling, proper coolant, and light finishing passes. Common dimensions include 2.00 in (50 mm) gauge length for flat sub-size coupons and 0.505 in (12.83 mm) diameter round specimens where allowed by ASTM E8/E8M.
Consider throughput and features. If you produce many round bars, a rigid lathe with tailstock support, threading cycles, and optional bar feed improves cadence. For varied flat work, look for travels around 12 in × 6 in × 6 in (305 mm × 152 mm × 152 mm), fast workholding, and an automatic tool changer. Labs that routinely test both sheets and bars often deploy one of each style to keep schedules predictable and results consistent.
If you would like to review configuration options for both flat and round systems, feel free to connect with our team on the Contact Us page.
How Should Labs Choose Between Flat-Specimen CNC Mills and Round-Specimen CNC Lathes?
Start with incoming stock and the governing standard. Sheet, strip, and plate are most efficiently machined as flat dog-bones on a milling platform, while rods and bars are best prepared as round specimens on a lathe. For metals, ASTM E8/E8M and ISO 6892 outline proportional geometries, so select the machine that matches the required coupon form. If thickness is limited, flat coupons are often the practical path. When both are allowed, round bars can simplify stress calculations and reduction-of-area measurements.
Build your quality targets into the program and inspection plan. Common lab goals are diameter within ±0.001 in (±0.025 mm) for round gauges, width and thickness within ±0.0015 in (±0.04 mm) for flat gauges, and fillet radii within ±0.002 in (±0.05 mm). Aim for 32 to 63 µin Ra (0.8 to 1.6 µm) on the gauge section. Leave finish stock of 0.030 to 0.060 in (0.8 to 1.5 mm) for final passes, use sharp tooling, and apply coolant to avoid altering the surface layer. Deburr lightly, then polish only as needed to remove tool marks without changing dimensions.
Match the machine to throughput and workflow. A benchtop mill can produce a flat coupon in a few minutes, while a lathe with a tailstock and proper centers keeps TIR under 0.002 in (0.05 mm) across the gauge. For mixed workloads, many labs pair a flat system from the TensileMill CNC line with a round-prep TensileTurn unit to cover all materials efficiently.
If you would like to discuss selection criteria for your materials and standards, feel free to connect with our team on the Request a Quote page.
How Should I Set Up CNC Tooling, Fixturing, And Tolerances For Flat Versus Round Tensile Specimen Preparation?
For flat coupons, use a rigid vise or dedicated plate fixture that supports the gauge and fillet regions, and verify parallelism of the work surface within 0.001 in (0.025 mm). Keep clamp pressure low near the gauge to avoid distortion. For round bars, hold in a precision collet or soft-jaw chuck with a live tailstock center, and keep total indicated runout at or below 0.001 in (0.025 mm). Add 60° center holes with an entrance diameter near 0.10 in (2.5 mm) to maintain concentric support, and limit unsupported overhang to 3–4 in (75–100 mm).
Tooling differs by geometry. Flat specimens respond well to carbide end mills, 3/8–1/2 in (10–12 mm) diameter, with a light finishing pass of about 0.010 in (0.25 mm) per side using climb milling. Deburr edges minimally, about 0.005 in (0.13 mm). For round specimens, use finishing inserts with 0.016–0.032 in (0.4–0.8 mm) nose radius, depth of cut 0.004–0.008 in (0.10–0.20 mm), and feed 0.003–0.006 in/rev (0.08–0.15 mm/rev). Face ends square and add a 0.010 in × 45° (0.25 mm × 45°) chamfer. In both cases, apply flood coolant at 5–10 percent concentration to control temperature.
As practical targets, hold width or diameter within ±0.002 in (±0.05 mm), straightness within 0.002 in per 6 in (0.05 mm per 150 mm), and surface finish in the gauge section between 32–63 μin Ra (0.8–1.6 μm). Verify geometry against the selected standard, such as ASTM E8/E8M or ISO 6892 for metals and ASTM D638 or ISO 527 for plastics. Measure round diameters at three axial locations, and for flat coupons measure width and thickness in the necked region. Avoid cold work by keeping the part under 120°F (50°C), then, if needed, apply a light longitudinal polish to remove tool marks.
If you would like to review equipment options and sizing for your lab, you can connect with our team on the Contact Us page.
What Tolerance, Concentricity, and Surface Finish Targets Should We Use for Flat vs Round Tensile Specimens?
For flat coupons prepared to ASTM E8/E8M or ISO 6892, labs commonly hold width and thickness within ±0.002 in (±0.05 mm) and keep fillet radii within ±0.005 in (±0.13 mm). Cut edges should be smooth, typically 63–125 µin Ra (1.6–3.2 µm), with machined faces, if required, at about 32–63 µin Ra (0.8–1.6 µm). Break sharp edges lightly, about 0.005–0.015 in (0.13–0.38 mm), and ensure the gauge section is uniform through thickness. Verify at multiple points across the reduced section, not just at mid-length.
For round bars, diameter control drives data quality. A practical target is ±0.001 to ±0.002 in (±0.025 to ±0.05 mm) on the gauge, total indicated runout at or below 0.001 in (0.025 mm), and straightness within about 0.002 in over 6 in (0.05 mm over 150 mm). Surface finish on the gauge is typically 32–63 µin Ra (0.8–1.6 µm). If threaded grips are specified by the standard, cut threads after finishing the gauge to avoid distortion, and use 60° center holes to support the work during turning.
Process tips help you achieve these targets. On flat systems, use full-face fixturing, finish with a light climb-mill pass around 0.005 in (0.13 mm) radial, apply coolant, then deburr without rounding the gauge. On round systems, use a collet or soft jaws with a live center, finish in multiple light passes of 0.002–0.004 in (0.05–0.10 mm), and polish longitudinally. Preloaded templates in TensileMill CNC and TensileTurn CNC equipment help enforce geometry and compliance checks.
If you would like to discuss your testing requirements, feel free to connect with our team on the Contact page.
How Do I Choose Between Flat and Round Tensile Specimen CNC Systems for ASTM E8 and ISO 6892 Work?
Start with material form and the governing standard. Sheet, strip, and plate, typically 0.04–0.50 in (1.0–12.7 mm) thick, are prepared on a flat-specimen CNC mill per ASTM E8/E8M or ISO 527. Bars and rods, often 0.25–1.00 in (6.4–25.4 mm) diameter, are turned on a round-specimen CNC lathe for ASTM E8 or ISO 6892 work. When a material could be tested either way, follow the product form specified by the standard to keep results comparable.
For flat coupons, hold width and thickness uniformly, probe stock before cutting to minimize taper to under 0.0008 in (0.02 mm), and program the correct shoulder radii from the selected method. Use sharp carbide end mills, climb milling, and flood coolant to avoid cold work. Many labs target edge quality that deburrs to a smooth finish near 32–63 µin Ra (0.8–1.6 µm).
For round bars, center-drill each end, support with a live center, and limit total indicated runout to 0.001 in (0.025 mm) across the gauge length. A 0.015 in (0.40 mm) insert nose radius and light finishing passes help achieve a uniform surface and stable diameter. If your workload regularly includes both sheets and bars, the most efficient path is one dedicated machine of each type. If you must pick one first, select the platform that covers at least 80 percent of your daily specimens.
If you would like to compare round-specimen options, you can explore details on the All Round Sample Preparation Products product page.
What Tolerances And Surface Finish Should Flat Tensile Specimens Meet Before UTM Testing?
For metallic dog-bone coupons per ASTM E8/E8M or ISO 6892-1, hold gauge width and thickness within about ±0.001 to ±0.002 in (±0.025 to ±0.05 mm). Keep shoulder transitions smooth to the specified radius, and target a gauge-section roughness of 32 micro-in Ra or better (0.8 µm). For plastics under ASTM D638 or ISO 527, dimensional limits are typically wider, yet edge quality and uniform thickness across the gauge length, often 2 in (50 mm), remain critical.
On a flat CNC mill, leave 0.020 to 0.040 in (0.5 to 1.0 mm) stock for finishing. Use a sharp 2 or 3-flute carbide tool, climb-mill the final contour with a light step-over near 0.010 in (0.25 mm), and apply ample coolant to cap heat. Deburr mechanically, then polish along the loading axis through progressively finer abrasives until the target Ra is reached. Remove any longitudinal tool marks that could seed cracks.
Verify thickness and width with calibrated micrometers, confirm gauge length with a template, check shoulder radii with radius gauges, and measure Ra on the gauge section with a profilometer. Mark IDs outside the gauge, clean off coolant residues, and condition specimens to the temperature and humidity required by the selected standard.
If you want to review machine options for flat-specimen preparation, you can explore details on the Flat Tensile Test Sample Preparation Machines equipment page.
How Do You Prepare Forged Tensile Specimens For ASTM E8 Testing?
Start by selecting the sampling direction specified on the drawing, usually parallel to the primary grain flow of the forging. Remove surface scale and decarburized layers before laying out the blank. For common ASTM E8 subsize flats, target a 2.00 in (50 mm) gage length with about 0.50 in (12.5 mm) gage width, or apply the 4D rule for round bars. Keep the reduced section centered and coplanar with the forging’s working direction to avoid mixed microstructures.
Machine the profile on a dedicated specimen preparation system. Use flood coolant and conservative finishing parameters to avoid work hardening, for example 0.010 in (0.25 mm) radial depth of cut with 0.002–0.006 in/rev (0.05–0.15 mm/rev) feed on steels. Finish the gage length longitudinally and aim for Ra ≤ 32 µin (0.8 µm). Break edges lightly, about 0.010 in (0.25 mm), to prevent nicks that can trigger early fracture.
Before testing, mark two punch or scribe marks 2.00 in (50 mm) apart, verify straightness within roughly 0.002 in per 6 in (0.03 mm per 150 mm), and confirm grip sections match the selected ASTM E8 specimen type. During mounting, align the shoulders in the grips and tighten evenly to minimize bending from off-axis loading.
If you want repeatable, standards-based coupon machining with built-in specimen libraries, you can review Flat Tensile Test Sample Preparation Machines on the product page.
Which Pre-Test Checks Catch Hidden Preparation Errors In Flat Tensile Specimens?
Start with geometry. Measure gauge width and thickness at multiple points with micrometers, then verify fillet radii with radius gauges or an optical comparator against ASTM E8/E8M or ISO 6892-1 drawings. Mark and confirm the gauge length, commonly 2.0 in (50 mm), and record the exact values on the traveler for traceability.
Review surface and edges. Target a gauge-section roughness at or below 80 µin Ra (2.0 µm). Under 10× magnification, look for burrs, EDM recast, waterjet striations, laser HAZ tint, or grinder chatter. Reject parts with nicks at the radius or gauge margins; light, uniform deburring is acceptable if it does not change profile.
Do a quick alignment and handling check before mounting. Clean gauge faces with acetone or isopropyl alcohol, then load a dummy to verify even grip contact. If bending strain is monitored per ASTM E1012, keep it within accepted limits such as below 5%. Until testing, store specimens at 68–73 °F (20–23 °C) and below 50% RH to reduce oxidation and residue transfer.
If you would like a closer look at system capabilities, you can explore details on the TensileMill CNC – Flat Specimen Preparation product page.
How Should Surface Finish and Edge Quality Be Controlled for Reliable ASTM E8 and ISO 6892 Tensile Results?
Target a gauge-section roughness of 80 µin Ra (2 µm) or finer for most metals. For high-strength or brittle alloys, work toward 32–63 µin Ra (0.8–1.6 µm). Create a dedicated finish pass of about 0.005 in (0.13 mm) with climb milling and coolant, then clean the gauge section with acetone. Extensometer contact pads should be flat within about 0.001 in (0.025 mm) over the contact length.
Protect the profile. Break sharp edges lightly, about 0.005–0.010 in (0.13–0.25 mm), avoiding a large chamfer that reduces area. Inspect the entire perimeter at 10× to catch nicks and micro-notches. If blanks are cut by waterjet or EDM, leave 0.020–0.040 in (0.5–1.0 mm) stock and remove striations or recast with a final mill or grind. After laser cutting, remove the heat-affected layer by grinding 0.004–0.008 in (0.10–0.20 mm) from the gauge walls.
Record finish, edge break, and inspection magnification with each lot. Verify final dimensions per ASTM E8 or ISO 6892 drawings, and keep grip faces clean to prevent slip that masks surface-related problems.
If you want controlled Ra and scratch direction without changing geometry, you can explore details on the Automatic Longitudinal Polisher System equipment page.
Which CNC Features Help Produce ASTM E8 or ISO 6892-Compliant Flat Tensile Specimens?
For metals qualified to ASTM E8 or ISO 6892, select a CNC mill with standards-ready templates and precise axis control. Program gauge width and fillet radii per the selected specimen type, then hold gauge width within ±0.002 in (±0.05 mm) and radii within ±0.010 in (±0.25 mm). A rigid table, low spindle runout under 0.0004 in (0.01 mm), and consistent clamping keep the gauge section centered and repeatable from part to part.
Use climb milling with a light finish pass around 0.005 in (0.13 mm) to clean edges. Target a smooth edge and surface roughness near Ra 32 to 63 µin (0.8 to 1.6 µm). Apply flood or mist coolant and keep part temperature below 140 F (60 C) to avoid unwanted thermal effects. Deburr with a small 0.005 to 0.010 in (0.13 to 0.25 mm) edge break and confirm smooth fillet blending into the gauge.
In-process probing helps verify blank alignment, compensate tool wear, and confirm gauge width before release. For ISO/IEC 17025 workflows, log tool IDs, offsets, and CMM checks of width, thickness, and radius, then archive programs and inspection data for audits. If cutting thicker plate, confirm torque at low rpm and fixture reach for blanks up to 12 in × 24 in (305 mm × 610 mm).
If you want to compare platform sizes and control packages, you can explore details on the Flat Tensile Test Sample Preparation Machines equipment page.
How Do I Choose a CNC Tensile Specimen Preparation Machine for ASTM E8 or ISO 6892 Work?
Start with sample types, materials, and volume. For typical ASTM E8 flat coupons near 0.25 in thick (6.35 mm), target rigid fixturing, travel around 12 in × 12 in (305 mm × 305 mm), and a 3 hp spindle (2.2 kW). Repeatability near ±0.0005 in (±0.013 mm) helps keep gauge width and fillet transitions inside tolerance. For batch work, use a vise or vacuum fixture that holds 6 to 12 blanks.
Program tooling around standards radii. A common subsize radius is 0.5 in (12.5 mm). Rough with a 3/8 in (9.5 mm) end mill, leave 0.005 in (0.13 mm), then finish using climb cuts to clean edges. On 0.25 in thick (6.35 mm) steel, feeds of 15 to 30 in/min (380 to 760 mm/min) with mist or flood cooling limit burrs and heat. Use ASTM E8 or ISO 6892 templates to shorten setup.
Before releasing parts, check gauge width, thickness, and radii with calibrated tools and record values. Ask for ISO/IEC 17025 traceable alignment assistance aligned with ASTM E1012, and verify your UTM per ASTM E4 or ISO 7500-1. Add quick weekly checks with a 6 in (152 mm) ground bar and keep offset notes so the next operator starts from a known reference.
For model comparisons and specifications, you can review options on the Flat Specimen Preparation Equipment Lineup equipment page.
Which CNC Machining Parameters Matter Most For ASTM E8 And ISO 6892 Flat Tensile Specimens?
Specimen geometry drives data quality before the UTM ever loads the part. For a common ASTM E8/E8M flat specimen, hold width to 0.500 in ±0.010 in (12.5 mm ±0.25 mm), use a 0.50 in (12.5 mm) fillet radius, and keep gauge length at 2.00 in (50 mm). ISO 6892 workflows often use 1.97 in or 3.15 in (50 mm or 80 mm) gauge lengths. Any burr, scratch, or asymmetry near the shoulders shifts stress away from the gauge and can trigger invalid fracture outside the test section.
During CNC milling, use a cutter that matches the programmed radius, then leave a small stock for a contour finishing pass to stabilize edge quality. Aim for surface roughness near 63 µin Ra (1.6 µm) or better and keep burr height under 0.002 in (0.05 mm). Maintain shoulder symmetry within a few thousandths, for example ±0.002 in (±0.05 mm), to limit bending.
Practical checks include a quick CMM or template verification of width and radius, a 10× visual edge inspection, and a light deburr that does not roll material into the gauge. Thermal control with coolant helps maintain size when cutting long blanks.
If you would like to review machine options and specifications for flat specimens, you can explore details on the Flat Tensile Test Sample Preparation Machines equipment page.
How Do I Qualify a CNC Milling Workflow for ASTM E8 and ISO 6892 Specimens?
Start with the target drawing. Program the CNC and cut a pilot lot of 10 flats from typical stock. Measure width, thickness, gauge length, and fillet radius with calibrated tools. Record surface roughness and aim for Ra ≤ 63 µin (1.6 µm). Fix the cutting recipe, for example a 0.250 in (6.35 mm) end mill, 8,000 rpm, 20 ipm (508 mm/min), climb milling on the finish pass with coolant.
Control the setup. Set vise or fixture torque to 15 ft-lb (20 N·m). Check edge condition on a bench microscope and verify radii with gauges, for example 0.50 in (12.7 mm) if that matches the drawing. Target dimensional repeatability of ±0.001 in (0.025 mm). Establish a wear limit, then replace the tool after 300 in (7.6 m) of cut path or when Ra drifts above 63 µin (1.6 µm). Run a gage R&R on width and thickness with 3 operators.
Connect machining to the test system. Verify force per ASTM E4 and alignment per ASTM E1012. Confirm the extensometer at 2.00 in (50.0 mm) under ASTM E83 or ISO 9513. Keep a traveler linking each specimen ID to CNC program revision, tool lot, and measurements. Re-do the study if blank thickness changes by over 0.040 in (1.0 mm) or the end mill diameter shifts by 0.010 in (0.25 mm).
If you would like to review flat-specimen machining options, you can explore details on the Flat Tensile Test Sample Preparation Machines product page.
How Should I Specify a CNC Machine for Flat Tensile Specimen Preparation?
Start with the standards you run and the specimen geometry. The machine should hold gauge length and fillet radii for ASTM E8 and ISO 6892 templates, for example 2 in (50 mm) gauge length with radius accuracy within ±0.005 in (±0.13 mm). Look for controlled toolpaths that create burr free edges and consistent width and thickness, with a typical edge break near 0.010 in (0.25 mm) and surface finish around 32 to 63 µin Ra (0.8 to 1.6 µm).
Match capacity to your blanks. Verify travel and Z clearance against your largest coupons, for example a table that accepts 12 in × 24 in (305 mm × 610 mm) stock and about 4 in (100 mm) vertical space. Rigid workholding that clamps the sheet along the neutral axis reduces chatter and taper. A spindle that can hold steady feed at low chip loads, roughly 10 to 60 ipm (0.25 to 1.5 m/min) for thin alloys, with flood or mist cooling, helps protect edge quality.
Check workflow items. Touchscreen programs with preloaded specimen families cut setup time and limit operator variability. Ask for alignment and calibration support to ISO/IEC 17025, plus ASTM E4 force verification and ASTM E1012 frame alignment, so the machine and the test results track together. For high volume, options such as automatic clamping, tool length probing, and multi part nesting can shorten cycle time without sacrificing dimensional control.
If you want to compare capacities and controls side by side, you can review model details on the Flat Tensile Test Sample Preparation Machines equipment page.
How Does the TensileMill CNC MINI Speed ASTM E8 Flat Specimen Preparation?
Operators load blanks, zero the stock, and select an ASTM E8 template in TensileSoft. The software preloads gauge length options, shoulder radii, and grip widths, then posts toolpaths without manual G-code. For stacked blanks, use parallel shims and clamp evenly so the top plane stays within 0.002 in (0.05 mm) across the vise span.
With the 24,000 RPM spindle, a 3-flute 0.375 in (9.5 mm) carbide end mill works well. For 6061-T6, set chip load around 0.0015–0.0025 in/tooth (0.038–0.064 mm/tooth), which produces roughly 108–180 ipm (2740–4570 mm/min). For alloy steel, drop to 0.0008–0.0012 in/tooth (0.020–0.030 mm/tooth), about 38–52 ipm (965–1320 mm/min). Leave a finish allowance near 0.005 in (0.13 mm) and take a full-profile climb pass to hit width tolerance. Target surface finish in the 32–63 µin Ra range (0.8–1.6 µm).
Verify gauge section width and overall length with a calibrated rule and micrometer or a profile template. Hold dimensional variation within ±0.002 in (±0.05 mm) or per drawing. If required by your method, light edge break near 0.005 in (0.13 mm) and a quick polish to P400 grit support repeatable results prior to testing under ASTM E8.
If you would like to review specifications and workflow examples, you can explore details on the TensileMill CNC MINI product page.
How Do Labs Plan An In-House Tensile Specimen Preparation Setup That Meets ASTM And ISO Requirements?
Start with your standards and geometry library. For metals, ASTM E8 subsize and full-size choices often use 2.0 in (50 mm) or 1.0 in (25 mm) gage lengths; plastics commonly follow ISO 527 geometries. A software-driven workflow that lets operators pick a template, then locks critical dimensions and shoulder radii, reduces programming mistakes and shortens onboarding for new staff.
Match equipment to stock. Use a flat-specimen milling system for dog-bone blanks from plate or sheet, and a round-specimen CNC lathe for bars and rods. For consistent finish, leave about 0.020 in (0.50 mm) per side for a final pass near 0.008 in (0.20 mm). Target a surface roughness near 63 µin (1.6 µm) or better; if tool marks remain, a longitudinal polisher helps clean the gauge section without rounding edges.
Plan the workflow details. Keep dedicated fixtures that center the blank on the machine axis and prevent tilt. Stage duplicate cutters and inserts, and track tool life by part count instead of time. Use workholding that clamps outside the shoulder region so the gage section is untouched. Maintain a small kit of consumables, including end mills, lathe inserts, jaw pads, and polishing media, to avoid stoppages.
If you would like to review sample-prep options for your lab, you can connect with our team on the Contact Us page.
How Should Labs Plan Service and Calibration for Tensile Specimen Preparation and UTM Systems?
Plan annual force verification for UTMs to ASTM E4 or ISO 7500-1, with a maximum interval of 18 months. Reverify after relocation, repairs, or any out-of-tolerance result. In daily use, warm electronics 20 to 30 minutes, check zero, and confirm load-train seating and grip face condition. Log rate control and encoder checks. For alignment, follow ASTM E1012 when required by method or customer, or after grip or fixture changes.
For tensile sample preparation machines, set a practical PM rhythm. Monthly, check spindle runout and toolholders, aiming for ≤ 0.001 in (≤ 0.025 mm). Verify vise or chuck runout and, on lathes, tailstock center height. Cut a verification coupon and confirm critical dimensions to ± 0.001 in (± 0.025 mm) against a calibrated reference.
Budget for consumables and spares that wear, such as end mills, inserts, collets, jaw inserts, and belts. Schedule remote software updates on a set cadence, for example quarterly. Maintain one log that ties calibrations, PM tasks, certificates, and operator training to specific serial numbers. This documentation keeps audits predictable under ISO/IEC 17025, ASTM E4, and ISO 7500-1.
If you would like to review accredited methods and scheduling options, you can read the Certification for Testing Equipment page to explore details on the information page.
How Does a Single-Vendor Tensile Testing Workflow Improve Compliance and Throughput?
A single-vendor workflow ties specimen preparation, polishing, and tensile testing into one chain. Operators work from standard libraries aligned to ASTM and ISO geometries, which cuts programming steps and reduces mismatches between machined dimensions and test fixtures. Lead time drops because blanks move directly from the mill or lathe to the tester, while one support group handles installation, calibration, and training.
Typical chain: flat milling or round turning to the specified gauge and fillet radii, optional longitudinal polish, then testing on a UTM with matched grips and an extensometer. For metals per ASTM E8, a common gauge length is 2 in (50 mm). For plastics per ASTM D638 or ISO 527, Type I and 1A specimens use 2.0 in (50 mm) gauge length. Size the frame to at least twice the predicted failure load, for example 22 kip (100 kN) for many steels.
On the floor, watch details that affect repeatability. Keep gauge length temperature under 150 F (65 C) during machining to avoid local property changes. Inspect cutters every 25 to 50 parts and adjust feed to prevent chatter that raises surface stress. Use wedge or pneumatic grips with serrations matched to hardness, verify alignment per ASTM E1012, and keep spare jaws and sharp inserts on hand to avoid mid-run delays.
If you would like to discuss your workflow, you can connect with our team on the Contact Us page.
Which CNC Features Should Operators Prioritize For Flat Tensile Specimen Preparation?
Pick a machine that repeats accurately and guides setup. Look for probing or clear zeroing routines, saved work offsets, and fixtures that hold multiple blanks without clamping the gauge section. For throughput, a plate that nests 4 to 8 blanks helps standardize toolpaths and inspection steps.
Aim for dimensional repeatability within ±0.001 in (±0.025 mm). A gauge section finish at or below 63 µin Ra (1.6 µm) keeps machining marks from biasing tensile results under ASTM E8 and E8M. Size the work envelope for common blanks, for example 14 in × 2 in × 0.5 in (356 mm × 51 mm × 12.7 mm), and use soft jaws with relief so contact occurs outside the gauge length and fillet radii.
For stable cutting, a rigid cast-iron frame with a 3 to 5 hp spindle (2.2 to 3.7 kW) and dependable flood coolant is practical. As a starting point in low-carbon steel with a 0.375 in (9.5 mm) end mill, try about 20 in/min (508 mm/min) and 2,500 rpm, then adjust based on tool wear and finish. Deburr and, when needed for fracture sensitivity, polish to roughly 32 µin Ra (0.8 µm). Systems designed for tensile blanks, such as the TensileMill CNC - Classic Upgrade, streamline these steps and support ASTM E23 Charpy profiles as well.
If you want system details and typical setups, you can review the TensileMill CNC - Classic Upgrade product page.
How Does A CNC Operator Machine Tensile Specimens To ASTM E8 And ISO 6892 Requirements?
Work begins with the print. The operator confirms stock thickness, references the datum scheme, and aligns the blank so the gauge section cuts parallel to the load axis. Workholding is tightened uniformly, then indicated to within about 0.001 in (0.025 mm). A dry run verifies toolpaths against a 2.0 in (50 mm) gauge length or the metric equivalent in ISO 6892.
Roughing removes most material while keeping heat low. For the final contour, many labs leave 0.005 to 0.010 in (0.13 to 0.25 mm), switch to a sharp end mill, and use a light climb-milling pass with lead-in and lead-out kept outside the gauge section. Edges are broken lightly, not rounded, and the surface is finished along the loading direction to about 125 µin Ra (3.2 µm) or finer to avoid stress risers.
Inspection documents the gauge width and thickness to about ±0.001 in (±0.025 mm), verifies gauge length, and checks parallelism. Measurements are taken with calibrated micrometers, height gauges, or a CMM. A brief longitudinal hand polish with 320 to 600 grit media removes residual burrs, and all IDs and lot numbers are recorded for traceability under ASTM E8 or ISO 6892.
If you would like to review flat-specimen equipment options, you can explore details on the Flat Tensile Test Sample Preparation Machines equipment page.
What Room Conditions Should Be Maintained During CNC Tensile Specimen Preparation?
Hold the prep room near 68 to 74 F (20 to 23 C) with 40 to 55% relative humidity. For moisture-sensitive plastics, condition material per ASTM D618 at 73.4 ± 3.6 F (23 ± 2 C) and 50 ± 5% RH before machining and testing. Keep fixtures, machine table, and blanks at the same temperature; a 10 F (5.6 C) swing can move aluminum by about 0.0004 in (0.011 mm) across a 6 in (152 mm) gauge length.
Control moisture and contaminants at the machine. Use an enclosed CNC with HEPA extraction to limit dust and oil mist. For metals, remove water-based coolant promptly and dry with clean air; for polymers and composites, avoid water exposure, wipe with isopropyl alcohol, and store in sealed bags with desiccant. Limit air exposure on corrosion-prone alloys, and clean oxide with a light polish that does not change thickness.
Process behavior that improves repeatability: allow raw stock to thermally soak in the lab for at least 30 minutes, machine and measure in the same room, target final dimensional checks at 68 F (20 C), and handle the gauge section with gloves to prevent residue. If a polisher is used, finish and measure within the same environmental window.
For additional guidance, you can contact us through the Contact Us page.
What ROI Thresholds Indicate It Is Time To Bring Tensile Testing In-House?
Start by comparing the calculator’s 12-month outsourcing total to a realistic equipment package. If yearly spend for sample preparation and tensile tests, including shipping, approaches the quoted price of a UTM with grips plus a flat or round specimen machine, payback often falls within 12 to 18 months. Using the default values, 8 flat specimens per week at $240 each with weekly shipping at $50 equals roughly $102,000 per year, which can justify an internal lab for many operations.
Check schedule risk and growth next. A 14-day turnaround holds WIP and pushes lot release. If results routinely gate production or PPAP timing, shorter internal cycles can outweigh a lower annual spend. Apply your expected volume increase, for example 10 percent per year, and review where the in-house curve overtakes outsourcing.
Right-size the equipment to your blanks since dimensions affect price and throughput. Flat blanks under 0.5 in (12.5 mm) thickness and round stock under 4.0 in (100 mm) diameter and 8.0 in (200 mm) length generally fit compact sample-prep systems. Larger inputs may require higher-capacity machines and a different ROI. For ASTM E8 metals or ISO 527 plastics, include proper grips and extensometry in the capital model.
If you would like to review frame capacities, grips, and software options, you can explore details on the All Tensile Testing Equipment page.
How Do Automated Flat-Specimen CNC Systems Improve Accuracy, Throughput, and Compliance Over Manual Router Tables?
Closed-loop CNC control removes operator variability, so gage width, shoulder radii, and thickness land within tight limits. Systems in this class routinely hold ±0.0003 in (±0.008 mm), which reduces stress concentrators at the shoulder and along the gage. Traceable programs and automatic logging support audits and make it easier to demonstrate alignment with ASTM E8 and ISO 6892 geometry requirements.
Throughput improves because blanks can be fixtured in batches and cut in a single cycle. An 8-up fixture allows multiple specimens to be produced simultaneously, cutting overall prep time by roughly 70 to 90 percent compared to one-at-a-time router work. Typical flat capacities reach about 14 in × 2 in × 0.5 in (356 mm × 50 mm × 12.7 mm), so subsize and standard coupons can be programmed from the same setup with consistent entry and exit paths that protect edges.
Operator safety and surface quality also improve. Fully enclosed cutting, interlocks, and automated tool changes limit exposure to rotating tools. With the right cutter and feeds, edge finish commonly reaches Ra 16 to 32 µin (0.4 to 0.8 µm), which helps minimize post-processing before polishing. Tool life monitoring and standardized toolpaths further reduce scrap and rework, keeping specimen geometry consistent across lots and materials, from aluminum to high-strength steels and nickel alloys.
If you want to see fixture options and cycle-time examples, you can explore details on the TensileMill CNC Classic Upgrade product page.
How Do Automated Flat-Tensile CNC Systems Improve ASTM E8 and ISO 6892 Compliance Versus Manual Routers?
Automated CNC preparation holds gauge width, thickness, and shoulder radii within tight tolerances, typically about ±0.001 in (±0.025 mm) across a batch, which supports ASTM E8 and ISO 6892 dimensional limits. Consistent toolpaths and fixturing produce smooth edges around 32–63 µin Ra (0.8–1.6 µm Ra), lowering stress risers that can cause early fracture. Manual router tables depend on hand-guiding, so burrs, taper, and nicked fillets are more common, which increases variability in elongation and ultimate tensile strength results.
Throughput improves because multi-part fixtures and canned programs machine several coupons in one cycle. For example, operators can fixture up to eight blanks at once, then cut the gauge sections and apply light chamfers in a single program. Typical work envelopes accommodate flat specimens up to about 14 in × 2 in × 0.5 in (356 mm × 50.8 mm × 12.7 mm). Libraries of standard geometries reduce setup, while tool-life monitoring keeps cutter condition steady on materials ranging from aluminum to alloy steels near 60 HRC.
Safety and traceability are stronger with enclosed cutting, interlocks, and automatic coolant and chip evacuation. Digital logs capture program IDs, offsets, and cycle times, so each batch can be tied to a preparation record for audits. This combination of dimensional control, repeatable surface finish, and documented process quality is difficult to achieve with manual routers.
If you would like to review specifications and see example workflows, you can explore details on the TensileMill CNC Classic Upgrade product page.
How Do CNC Flat Tensile Specimen Systems Improve Tolerance, Throughput, and Safety Compared With Manual Routers?
Programmable CNC preparation removes operator variability, so gauge widths and shoulder radii are cut to repeatable tolerances, often down to ±0.0003 in (±0.008 mm) when the machine, tooling, and fixturing are set correctly. Software libraries for common specimen geometries help match ASTM E8 and ISO 6892 dimensions, while rigid frames and controlled feeds maintain uniform edges that resist stress risers. Typical flat capacities cover about 14 in (356 mm) in length, 2.00 in (50.8 mm) in width, and 0.50 in (12.7 mm) in thickness, which covers most sub-size and standard coupons.
Batch processing and repeatable toolpaths raise throughput. Multi-part fixtures routinely cut up to 8 blanks in one cycle, and integrated roughing and finishing strategies reduce secondary deburr steps, cutting total prep time by up to 90 percent. Because geometry is stored in the control, re-runs and cross-shift work produce the same result, which reduces re-prep and schedule slips.
Safety and material range improve as well. Enclosed work zones, interlocked doors, and chip evacuation help separate operators from rotating cutters, which reduces exposure compared with open router tables. With correct cutters and feeds, hardened steels near 60 HRC, titanium alloys, and nickel-based superalloys are machined with stable surface quality, where manual routers often stall, chatter, or burnish. The net result is fewer test interruptions, cleaner fracture behavior, and a higher likelihood that your lab work supports standards conformance and audit traceability.
If you would like a closer look at system capabilities, you can explore details on the TensileMill CNC Classic Upgrade product page.
What Measurable Gains Do Automated CNC Flat Specimen Systems Deliver Over Manual Router Tables?
Automated CNC preparation keeps tensile blanks within tight gauge and width tolerances, commonly ±0.0003 in (±0.008 mm), and holds shoulder radii and fillets consistently. Toolpaths, probing, and fixed work offsets reduce operator variability, which helps specimens meet the dimensional intent of ASTM E8 and ISO 6892. Smooth edges and controlled chamfers minimize stress risers, and typical surface finishes of 32–63 µin Ra (0.8–1.6 µm) reduce premature failures during testing.
Throughput increases because the machine batches multiple blanks in one cycle. For example, preparing up to 8 flat specimens at once, each as large as 14.0 in × 2.0 in × 0.50 in (356 mm × 51 mm × 12.7 mm), cuts changeovers and handling. Libraries of standard geometries and canned cycles for rough, finish, and deburr operations shorten setup and reduce rework, so labs move from queuing parts to loading, pressing start, and recording results.
Safety and traceability also improve. Fully enclosed cutting, interlocked doors, and automated chip evacuation limit exposure to sharp tools and airborne debris. The controller logs programs, revisions, and offsets, so you can document each lot’s preparation parameters for audits and investigations. Together, these gains translate to higher compliance, lower scrap, and more reliable tensile data.
If you would like to review capabilities and specifications, you can explore details on the TensileMill CNC – Classic Upgrade product page.
How Do CNC Flat Tensile Specimen Systems Improve Accuracy and Throughput Compared With Manual Router Tables?
Automated CNC preparation holds tight dimensional control and repeatability, which directly improves test validity. Systems maintain tolerances as fine as ±0.0003 in (±0.008 mm) on gauge width and shoulder radii, and produce uniform fillets and edge quality that minimize stress raisers. Standard libraries and probing help align every blank consistently, supporting compliance with ASTM E8 and ISO 6892-1 without constant operator adjustments.
Throughput improves because multiple blanks can be fixtured and machined in one cycle. For example, a compact flat-specimen machine can process up to 14.00 in (355.6 mm) long, 2.00 in (50.8 mm) wide, and 0.50 in (12.7 mm) thick specimens, with fixtures that allow 6 to 8 parts per run. The operator loads and clamps the stack, selects the required profile from the library, closes the enclosure, and starts the program. The toolpath repeats identically on every part, which reduces rework and scrap and can cut total preparation time by as much as 90 percent.
Safety and traceability also improve. Enclosed work zones, interlocks, and automated tool changes limit exposure to rotating cutters and chips, while integrated job recipes and logs record the preparation parameters for audits. The combination of consistent geometry and smooth finishes helps keep fractures within the gauge section, which reduces invalid tests and repeat machining.
If you would like to review capabilities and standard libraries, you can explore details on the TensileMill CNC - Classic Upgrade product page.
How Should Labs Plan Tensile Tests For Recycled And Upcycled Materials?
Recycled feedstock varies by source, melt history, and contamination, so test planning starts with defining the property set needed for use. Typical targets are yield and ultimate strength, modulus, and elongation. Batch variability makes lot tracking and consistent geometry essential, otherwise small shifts in section or surface act as unintended stress raisers.
For plastics, machine dog-bone coupons to ASTM D638 Type I, 0.125 in (3.2 mm) thick with 2.0 in (50 mm) gauge length, and finish edges to about 32 µin Ra (0.8 µm). For metals, ASTM E8 subsize round at 0.25 in (6.0 mm) diameter with 1.0 in (25 mm) gauge length works well. Hold flow direction or rolling direction consistent across lots.
Set conditioning at 73.4 F (23 C) and 50 percent RH. Use 0.2 in/min (5 mm/min) crosshead speed for many plastics per D638 materials, and about 0.05 to 0.5 in/min (1 to 13 mm/min) for metals per E8 targets. Apply a small preload, 5 to 20 lbf (22 to 89 N). Use a 1.0 to 2.0 in (25 to 50 mm) extensometer and test at least five specimens per lot.
If you would like to discuss your testing requirements, you can reach our team on the Contact Us page.
Manual Router Mills vs CNC For ASTM E8 Flat Tensile Specimens: What Accuracy And Throughput Should Labs Expect?
Manual router milling can produce flat coupons, but accuracy rides on the operator. Typical outcomes are around ±0.020 in (±0.50 mm) on width and radii, with 30 to 45 minutes per specimen. Errors stem from collet runout, template wear, chatter, and heat. To tighten results, use rigid clamping with a sacrificial backer, shallow passes near 0.040 in (1.0 mm), a climb-cut finish, and sharp carbide. Plan on extra time for deburring.
A CNC tensile system removes most human variation. A flat-specimen machine such as the TensileMill CNC MINI routinely holds about ±0.0004 in (±0.01 mm) on the gauge section and completes a part in under 5 minutes. Ten ASTM E8 specimens that might occupy 6 to 7 hours by hand are finished in less than 60 minutes. The 3.0 hp (2.2 kW) spindle, programmed toolpaths, and dedicated fixtures keep geometry consistent across aluminum, steel, and Inconel.
Manual routing fits one-off R&D or unusual geometries. For production or any program audited to ASTM E8 or ISO 6892-1, CNC preparation delivers repeatable dimensions and traceable setups that support reliable tensile data.
If you would like cycle time and tolerance details, you can review specifications for the TensileMill CNC MINI on the product page.
Can Manual Router Mills Produce ASTM E8 Flat Tensile Specimens With Consistent Accuracy?
Manual router mills can shape flat blanks, but hand feed, tool deflection, and template wear often shift gauge width and shoulder radii. In practice, variation of 0.005 to 0.020 in (0.13 to 0.50 mm) across the reduced section is common, which affects parallelism and the radius blend. ASTM E8 and ISO 527 call for controlled geometry and smooth transitions, so even small taper or chatter marks can bias measured strength.
A dedicated flat-specimen CNC machine uses fixed fixturing, programmed paths, and stable spindle control. Typical repeatability near 0.0004 in (0.01 mm) and cycle times under five minutes are achievable on compact systems such as a 3.0 hp (2.2 kW) unit. A light finishing pass can deliver surfaces near 32–63 µin (0.8–1.6 µm) Ra, and radii match the programmed value without hand blending.
If a manual router must be used, reduce variability with a hardened template and positive stops, rigid clamping on a sacrificial plate, a sharp carbide cutter, and a climb-mill finish pass of about 0.005 in (0.13 mm) radial step. Deburr along the gauge axis only, verify radii with gauges, and record bit wear and feed direction every few parts. Confirm dimensions on a surface plate before testing.
You can review cycle times, dimensional capabilities, and software features on the TensileMill CNC MINI product page.
Are Manual Router Mills Appropriate For Preparing ASTM E8 Flat Tensile Specimens?
Manual router mills can work for low-volume or R&D jobs where geometry changes often and budgets are tight. An operator typically sets a template, locks the blank, follows guide fences, and deburrs the edges before gage marking. This approach can produce valid metallic specimens for ASTM E8 or ISO 6892-1 when the operator controls heat, feed, and tool wear carefully.
The limitations show up in repeatability. Width tolerance around ±0.005 in (±0.13 mm) and a burr height target under 0.002 in (0.05 mm) are realistic for consistent tensile results. Chatter or taper from an overhung setup can bias failure location. Keep overhang below 0.25 in (6 mm), use a light finishing pass of about 0.010 in (0.25 mm), and verify width every 0.50 in (12.7 mm) along the reduced section. For aluminum, a practical starting point is a 0.25 in cutter at about 30 ipm (760 mm/min) with climb finishing to improve edge quality.
For production runs or when you need repeatability tighter than ±0.001 in (±0.025 mm) across many parts, CNC flat systems are the better path. They hold dimensions, log settings, and simplify compliance checks such as 2.0 in (50 mm) gage length and shoulder transitions.
If you would like to review CNC alternatives for flat specimens, you can explore details on the Flat Tensile Test Sample Preparation Machines equipment page.
How Do Manual Router Mills Compare With CNC Machines for ASTM E8 Flat Tensile Specimen Preparation?
Manual router mills depend on hand control, templates, and fences. Expect part-to-part drift and small edge nicks that change section area. In practice, dimensional scatter can reach about 0.020 in (0.5 mm) on gauge width or radius, which risks out-of-tolerance ASTM E8 specimens. A CNC flat-sample system clamps the blank, applies a programmed toolpath, and holds about 0.0004 in (0.01 mm) accuracy across a batch, so gauge width and fillet geometry repeat.
Cycle time also shifts sharply. A manual setup typically needs 30 to 45 minutes per flat specimen including layout, roughing, finish passes, and deburring, which limits output to 5 to 6 pieces in a workday. A compact CNC, such as the TensileMill CNC MINI, machines a specimen in under 5 minutes and can complete a 10-piece ASTM E8 run in less than an hour with consistent edges ready for test.
Material choice matters. Hard alloys like Inconel tend to chatter under a handheld router. A CNC spindle around 3.0 hp (2.2 kW) with controlled feed, coolant, and proper tooling maintains chip load and edge quality on steels, aluminum, and plastics alike. For labs moving from one-off work to routine compliance, the CNC route reduces operator dependence and supports reliable tensile data.
If you would like to review cycle times, tolerances, and material capability, you can explore details on the TensileMill CNC MINI product page.
Are Manual Router Mills Suitable For Flat Tensile Specimen Preparation In Modern Labs?
Manual router mills can work for short runs, prototypes, and non-standard blanks. The operator controls toolpath and feed by hand, often against a template and hard stops. Without rigid fixturing, hand pressure or vibration can taper a gauge section by 0.002 to 0.008 in (0.05 to 0.20 mm) across 2 in (50 mm), and burrs or chatter may appear near the radius transitions.
For metallic specimens governed by ASTM E8 or ISO 6892-1, geometry and surface condition drive result scatter. Many labs target width within ±0.002 in (±0.05 mm), thickness within ±0.001 in (±0.025 mm), end radii within ±0.010 in (±0.25 mm), and 32 to 63 µin Ra (0.8 to 1.6 µm). With a sharp 0.25 in (6.35 mm) carbide cutter, light step downs of 0.010 to 0.020 in (0.25 to 0.50 mm), and chip load near 0.001 to 0.003 in/tooth (0.025 to 0.075 mm), these targets are achievable on aluminum or mild steel. Throughput remains modest at roughly 30 to 45 minutes per part, and cross-operator repeatability can drift. For recurring batches or tighter Cpk, a CNC flat specimen system holds variation tighter and shortens cycle time.
If you are weighing manual setups against dedicated machines, you can review flat system options on the Flat Tensile Test Sample Preparation Machines product page.
How Do I Plan an In-House Tensile Testing Setup to Reduce Lab Fees?
Start by scoping loads, throughput, and specimen types. Pair a flat-specimen CNC, such as the TensileMill CNC MINI, with a UTM sized to your peak force. Many metals labs work well at 50 kip (222 kN), while lighter programs run at 10 to 30 kip (44 to 133 kN). Above 100 kip (445 kN), a hydraulic frame is practical. Reserve about 48 in × 36 in (1219 mm × 914 mm) for the UTM, 30 in × 35 in (762 mm × 889 mm) for the CNC, plus 24 in (610 mm) of operator clearance.
Batch work drives savings. Rough cut blanks in lots, then machine in stacks when geometry allows. Typical aluminum feeds are 60 to 120 ipm (1.5 to 3.0 m/min); for steels, 20 to 60 ipm (0.5 to 1.5 m/min). Verify gage length and width to ASTM E8 or ISO 6892 before the UTM queue. Where finish affects strain uniformity, polish to Ra ≤ 32 µin (0.8 µm) and break edges to below 0.005 in (0.13 mm).
Retests drain budgets. Keep the load train calibrated per ASTM E4 and check alignment per ASTM E1012. Log grip face condition and clamp settings by material, then batch UTM runs by alloy and thickness to reduce jaw changes and heat build-up. This reduces stoppages and lowers per-specimen cost.
If you would like to size a frame and plan accessories, you can explore details on the Tensile Testing Equipment equipment page.
What Test Volume Justifies Bringing Tensile Specimen Preparation In House?
Use a simple crossover check. Tally your current external spend per month, including test fee, per-specimen prep, shipping, and any rush charges. Compare that to in-house variable cost, which includes operator time per specimen, consumables, and machine financing or depreciation. For many operations the crossover appears when monthly volume reaches roughly 25 to 50 specimens, especially when geometries repeat across jobs and schedules are tight.
Technical signals help the decision. If you routinely send flats with a 2 in (50 mm) gauge length at about 0.125 in (3.2 mm) thickness or rounds at about 0.25 in (6.4 mm) diameter, batch machining yields consistent parts with short setups. Stacking 2 to 4 blanks reduces part-to-part handling, and typical cycle times of 3 to 6 minutes per specimen are achievable on aluminum and common steels. A gauge finish near 32 µin Ra (0.8 µm) supports repeatable strain measurement and reduces retest risk.
Start with a pilot lot. Dial feeds and speeds until edges break cleanly, then validate dimensions against your chosen standard. Check gauge width and thickness at three locations with a 0.0005 in (0.013 mm) resolution instrument and record heat numbers to keep traceability intact.
If you would like to compare system options, you can review details on the Flat Tensile Sample Preparation Machines equipment page.
How Can In-House Specimen Preparation Cut Tensile Testing Lab Fees?
Third-party labs often add charges for specimen machining, surface finishing, rework, rush handling, and shipping. Moving specimen preparation in house with a flat or round CNC and a simple polisher reduces those add-ons. Operators can stack two or three blanks 0.125 in (3.2 mm) thick with a spacer and cut multiple coupons in one cycle. Grouping jobs by alloy and thickness reduces tool changes and repeated metrology setups, which lowers per-coupon labor time.
Run a consistent workflow. Saw stock slightly oversize, then leave 0.020 in (0.50 mm) per side for finishing. Use a final pass of about 0.005 in (0.13 mm) to stabilize edges and limit cold work. Deburr lightly with 0.010 in (0.25 mm) edge breaks. If the lab requests a smooth gauge section, target around 32 µin Ra (0.8 µm). Match geometry to ASTM E8 for metals with a 2.00 in (50 mm) gauge length, or use the applicable ISO 527 type for plastics to avoid rejection and retests.
Before shipment, verify width and thickness at three locations across the gauge length, check parallelism on a surface plate, and record heat lot and program ID. Keep a spare end mill ready and replace at the first sign of burnishing. Ship in larger batches to one lab to reduce per-sample pricing and freight.
If you are planning an in-house lab, you can explore details on the All Flat products equipment page.
How Do Adaptive CNC Controls Improve Flat Tensile Specimen Accuracy?
Adaptive CNC controls watch spindle load, vibration, and coolant temperature while cutting. If load spikes or heat climbs, the program trims feed by 5–15%, or reduces surface speed, to keep cutting temperature near 95 F (35 C) or below. That helps hold gauge width and shoulder geometry within tight bands, often around ±0.0005 in (±0.013 mm), and reduces burr formation on thin or heat-sensitive sections.
A practical recipe is to rough at about 0.010 in (0.25 mm) per pass, then finish at 0.002 in (0.05 mm) with climb milling around the shoulder radii. A light spring pass along the gauge section, oriented parallel to the loading axis, minimizes transverse tool marks that can act as stress starters. For ASTM E8 flat dog-bone layouts, adaptive feeds help maintain transition radii and parallelism across 2–14 in (50–350 mm) lengths.
Operators often add probing between parts. The probe confirms blank zero, checks gauge width, and applies tool-wear offsets as small as 0.0002 in (0.005 mm). The control logs speeds, feeds, lot ID, and cycle time for traceability. Paired with stable fixturing and sharp tooling, these behaviors support repeatable machining that aligns with ASTM E8 and ISO 6892 practices.
For workflow examples and specifications, you can explore details on the Flat Tensile Test Sample Preparation Machines equipment page.
How Do Modern CNC Sample Prep Systems Hold ASTM E8 And E23 Tolerances During Automated Runs?
Tight geometry starts with fixturing. Use solid parallels, short overhang on clamps, and a probing routine to locate the blank, then apply work offsets. In-process probing can correct drift by a few tenths, keeping width and thickness within ±0.001 in (±0.025 mm). For flat tensile blanks to ASTM E8, target a finishing allowance of 0.005 to 0.010 in (0.13 to 0.25 mm) to clean up heat or tool marks.
Run a three-step toolpath: rough, semi, and finish. Use climb milling on shoulders, a small corner radius cutter for the fillet, and coolant to keep part temperature under 120 °F (49 °C) so thermal growth does not shift dimensions. Apply tool-wear offsets in 0.0002 in (0.005 mm) steps based on measured cross section. For ASTM E23 notches, program the certified broach or form tool and verify root profile with a radius gage under a 10x loupe.
Surface quality matters. Aim for Ra 16 to 32 microinch (0.4 to 0.8 µm) on gauge sections. Systems like the Classic Upgrade record feeds, speeds, and offsets per lot, so an operator can repeat a validated recipe and run multi-part fixtures without chasing variability.
If you would like to review capabilities and common setups, you can explore details on the TensileMill CNC – Classic Upgrade product page.
How Does CNC Automation Improve Repeatability In Flat Tensile Specimen Preparation Under ASTM E8?
Repeatability starts with a controlled setup. Use fixed hard stops or an in-cycle probe to establish a single X0/Y0 and Z reference, then lock tool length and wear offsets to a saved library. Program the dogbone geometry from a standard template that matches your ASTM E8 drawing, including gauge radius and transitions, so every lot begins from the same code and offsets.
Workholding drives stability. Clamp outside the gauge section by at least 0.5 in (13 mm) to avoid distortion, and keep the blank flat on parallels or a vacuum plate. Rough leaving 0.010–0.020 in (0.25–0.50 mm) per side, then finish with a 0.002–0.004 in (0.05–0.10 mm) radial skim using climb milling. Use gentle lead-ins, for example a 0.10 in (2.5 mm) arc, and a balanced cutter, such as a 0.250 in (6.35 mm) carbide end mill for typical radii.
Control heat and verify dimensions on a schedule. Maintain chip load near 0.0015–0.003 in/tooth (0.038–0.076 mm/tooth) for low alloy steels, apply flood coolant to keep parts below 140 °F (60 °C), and check width and thickness every 10 pieces with a 0.0001 in (0.0025 mm) micrometer. Target 32–63 µin Ra (0.8–1.6 µm), break edges to about 0.005 in (0.13 mm), and confirm gauge length and radii against ASTM E8.
If you need model comparisons or specs, you can review options on the All Flat products equipment page.
What Setup Steps Improve ASTM E8 Compliance In Automated CNC Tensile Specimen Preparation?
Start with workholding and alignment. Tram the fixture or vise so the jaw face runs within 0.0005 in (0.013 mm) over 4.0 in (102 mm). Probe the blank’s centerline for X–Y, then set Z with an automatic tool setter to ±0.0002 in (±0.005 mm). Use a dedicated coupon fixture or dowel-pinned soft jaws to keep the gauge section square to the spindle. Verify spindle warm-up and backlash compensation before the first article.
Program a two-stage strategy. Rough, leaving 0.010 in (0.25 mm) per side. Finish with a climb pass along the gauge length using a 0.003 in (0.08 mm) radial step at 12–20 ipm (305–508 mm/min) and 0.10–0.20 in (2.5–5.0 mm) axial depth, adjusted to material hardness. Maintain coolant flow near 0.5–1.0 gal/min (1.9–3.8 L/min) to limit heat that can distort width. Blend shoulder radii to the print, and break edges lightly to avoid burrs that affect gauge length marking.
Close the loop with metrology. Many labs hold gauge width to ±0.001 in (±0.025 mm) for process control, parallelism within 0.0008 in (0.020 mm), and surface roughness near Ra 32–63 µin (0.8–1.6 µm). Mark a 2.0 in (50 mm) gauge length for common subsize per ASTM E8, record tool wear, and replace small end mills once width drift exceeds 0.0005 in (0.013 mm) or after 25–35 coupons.
If you would like to review fixtures, software options, and capacities, you can explore details on the Flat Tensile Test Sample Preparation Machines product page.
How Do CNC Settings and Finishing Steps Reduce Tensile Specimen Defects?
Defect control starts at the machine. Use a roughing pass, then a light finishing pass around the gauge with climb milling and sharp tooling. Keep the finish allowance small, about 0.005 to 0.010 in (0.13 to 0.25 mm). Feed gently through shoulders to avoid chatter marks. Maintain coolant near 0.5 to 1.0 gal/min (1.9 to 3.8 L/min) to limit heat and preserve microstructure. Replace tools before a visible wear land, around 0.004 in (0.10 mm), to reduce burrs and taper.
Target a uniform surface. For metals, a finish of Ra ≤ 32 µin (0.8 µm) suits general tensile work; high-strength or fatigue-sensitive lots benefit from Ra ≤ 16 µin (0.4 µm). Break edges with a 0.010 to 0.015 in radius (0.25 to 0.38 mm) or a 45° × 0.010 in chamfer (0.25 mm) so edges do not act as stress raisers. Polish lengthwise with 600, 800, 1200 grit, then, if required, a 120 µin (3 µm) diamond compound. Avoid transverse scratches across the gauge.
Verify geometry per the drawing and the applicable standard. Check width and thickness within ±0.001 in (±0.025 mm) where practical. Confirm gauge length and shoulder radii per ASTM E8 or ISO 6892-1 for metals, or ASTM D638 for plastics. A quick straightness check over 4 in (100 mm) helps prevent off-axis loading in the UTM.
If you would like to review machine options for flat specimens, you can explore details on the Flat Tensile Test Sample Preparation Machines equipment page.
Which CNC Practices Reduce Machining Defects in Tensile Specimens?
Set the finishing strategy to limit stress risers. Use climb milling for the final pass with a light radial depth, about 0.005 in (0.13 mm), and a feed near 0.002 in/tooth (0.05 mm/tooth). Keep the tool sharp to prevent chatter. After machining, break edges with a light 0.010 to 0.020 in (0.25 to 0.50 mm) chamfer or radius, then deburr. Target burr height under 0.002 in (0.05 mm).
Verify geometry before polishing. Measure width and thickness at three locations with a micrometer, and check grip parallelism within 0.001 in (0.025 mm) and gauge flatness within 0.002 in (0.05 mm). Conform dimensions to ASTM E8 or ISO 6892-1 for metals, and ASTM D638 or ISO 527 for plastics.
Finish the gauge section to 32 to 63 µin Ra (0.8 to 1.6 µm) for routine tensile tests. For high strength or fatigue-sensitive alloys, refine to 16 µin Ra (0.4 µm) and keep scratch direction along the load axis. If heat tint or work hardening is suspected, follow with a light longitudinal polish to restore a uniform surface without changing section size.
If you would like to review machining options for flat specimens, you can explore details on the Flat Tensile Test Sample Preparation Machines equipment page.
People Also Searched For
TensileMill CNC - Classic Upgrade
The TensileMill CNC - Classic Upgrade is the ultimate solution for precise and repeatable flat tensile and impact test specimen preparation. Engineered with TensileSoft™ technology and powered by a Fanuc controller, this machine offers an intuitive, user-friendly experience for both seasoned CNC operators and those with minimal training. Its compact footprint and turnkey design make it an ideal addition to any testing facility, ensuring maximum efficiency without compromising on accuracy. With a high-precision 3.2kW servo motor, the TensileMill CNC - Classic Upgrade ensures 0.0003” accuracy, handling specimens up to 14” long, 2” wide, and 0.5” thick. It meets ASTM, ISO, DIN, and JIS standards while efficiently preparing three 1.0” thick stacks at once with its triple clamping fixture. Compatible with an Impact/Pendulum notching machine, it also streamlines U & V-notch specimen preparation, making it a top choice for precise, high-speed testing.
TensileMill CNC MINI - Flat Specimen Preparation
The newly enhanced TensileMill CNC MINI has quickly climbed through the ranks as the optimal tensile sample preparation system in the global market place. Since the recent upgrades, the MINI surpasses our Classic model by virtually all parameters. Due to the MINI's small footprint, this compact tensile sample preparation system is ideal for accommodating smaller space requirements. The machine can also prepare virtually all types of tensile specimen standards, as well as it has a full scope of all purpose CNC machining capabilities. The advanced software allows to the operators to reach accurate and repeatable milling results in seconds with a push of 2-3 buttons. Don't let the small size fool you, the MINI is capable of accommodating medium to high volumes of tensile specimen preparation for materials with hardness values of up to 60HRC.
TensileTurn CNC – Industrial Upgrade – Round Tensile Sample Preparation Machine
The Industrial Upgrade model is a substantial step up from our Classic system. It offers the ability to accommodate larger starting blank sizes, tougher materials, irregular shapes, higher specimen preparation volumes, automatic center drilling and other unique functions required for the simplest and most accurate round tensile sample preparation. This system comes standard with a granite frame for added stability and the shock absorption for maximum sample preparation accuracy and longer system life-span. Though the Industrial Upgrade system is extraordinary for tensile specimen preparation needs, it is also capable of full range of CNC machining capabilities.
Tensile Testing Equipment
When selecting a tensile testing machine, there are a number of factors that must be considered. Whether you're upgrading in quality or functionality, or have the decision to move your materials testing in-house, you want to avoid buying a machine that doesn't meet the range of testing or materials for your needs. Of course you will be guided by the type of testing - tensile, compression, fatigue, etc. - and the ASTM or ISO standards for the market your product will enter. Other factors to consider when selecting the perfect tensile tester include…
